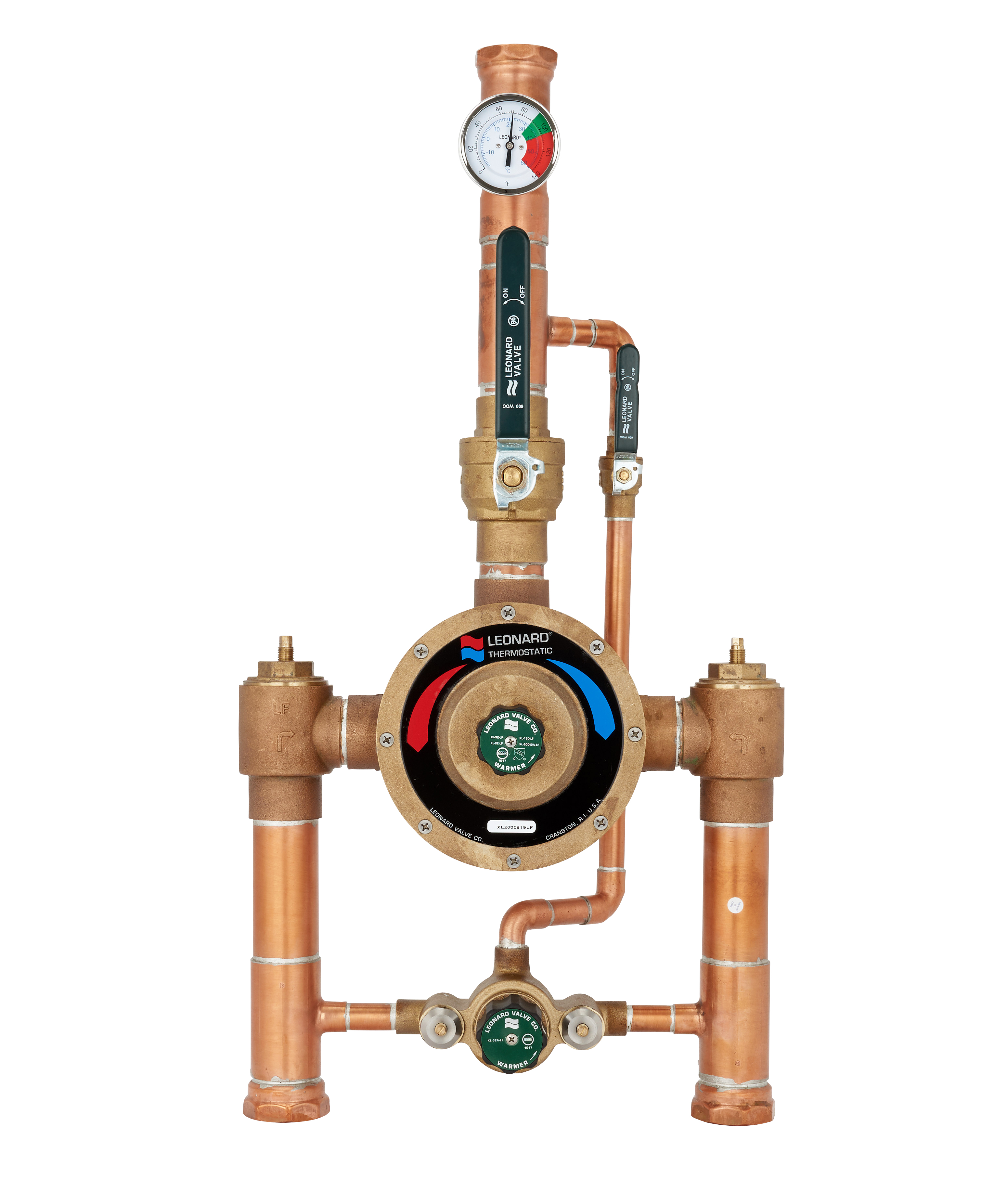

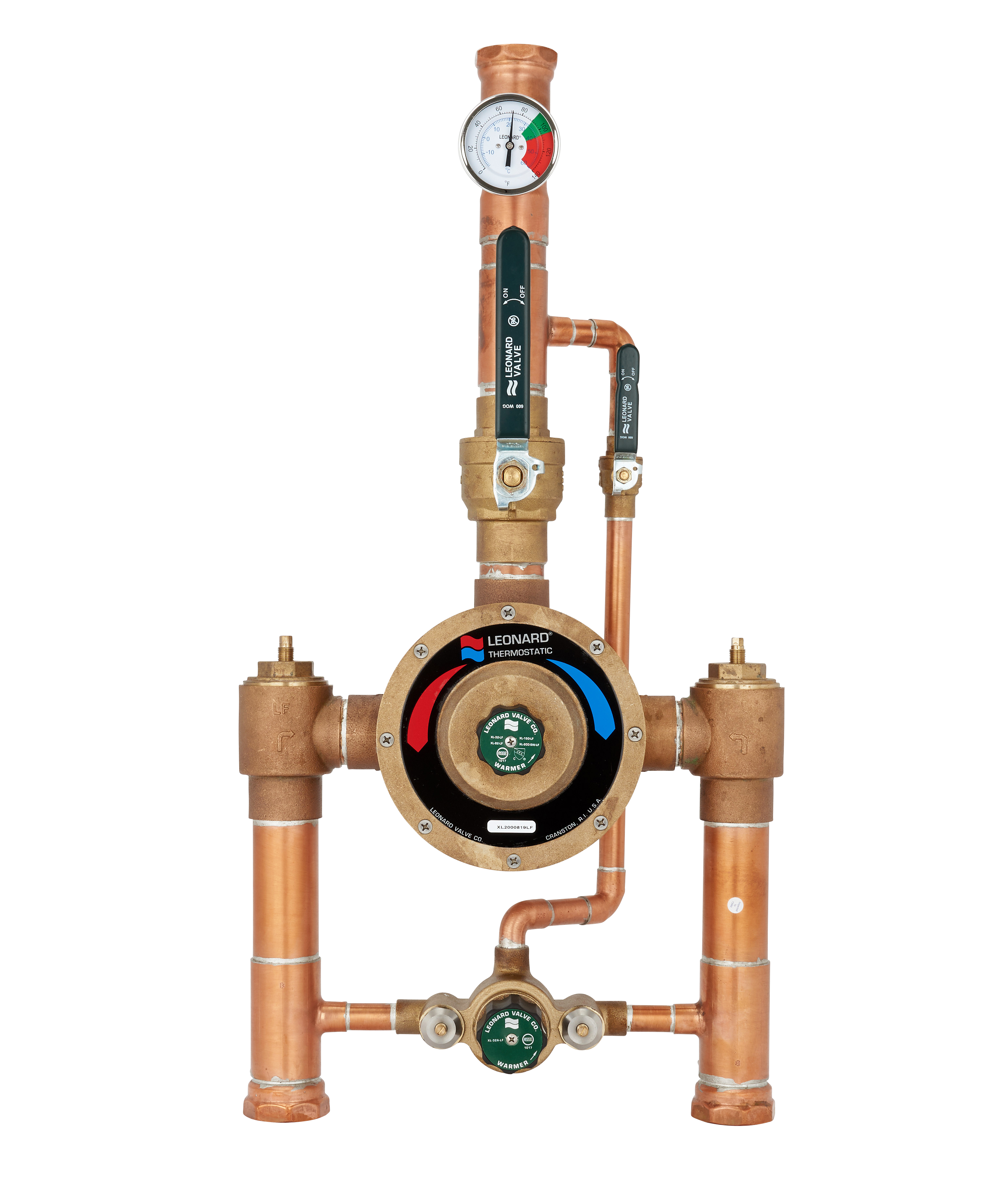

Lead Free HL Mixing Valve - XL-20032-LF-BDT

• High Low Dual Valve Thermostatic Water Mixing Valve
with 1 GPM (3.8 l/min) minimum flow capacity
• 2” inlets, 2” outlet (51mm x 51mm)
• Outlet dial thermometer and ball valves
• Integral combination checkstops
• 125 PSI (8.6 BAR) maximum operating pressure
• Copper encapsulated thermostatic assembly
with polished stainless steel shuttle
• Locking temperature regulating handle set for 120°F(49°C)*
• Temperature adjustment range, 95-135ºF (35-57ºC) **
• Internal parts of lead-free bronze, stainless steel
• Integral wall support for easy mounting
• Rough Bronze Finish
Downloads
Specification
Inlets 2"
Minimum Flow(GPM) 1
Outlet 2"
Description
Chrome Plated Finish CP
Inlet Thermometers IT
Less Wall Support LWS
Test Connection TC
Megatron Nucleus Installed
