Exposed Point of Use Mixing Valve

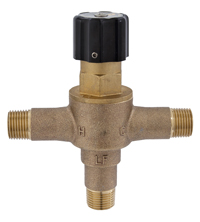

LF Point of Use - Model 270-LF

ECO-MIX ™ Lead Free Bronze body Locked temperature adjustment cap (vandal resistant) Copper encapsulated thermostat assembly with polymer thermoplastic shuttle Stainless steel springs Buna-N: O'rings Integral check valves on hot and cold inlets PRESSURE-TEMPERATURE: Minimum Flow:0.25 GPM (0.95 l/Min) Maximum Pressure:125 PSI (8.6 BAR) Maximum Hot Water temperature: 200°F- (93°C) Approach Temperature 5°F(2.8°C) above set point.

Downloads
Specification
Inlets 1/2"
Maximum Flow(GPM) 12
Minimum Flow(GPM) 0.25
Outlet 1/2"
Description
Ball Valve BV
Chrome Plated Finish CP
Dial Thermometer on Outlet DT
Mounting Bracket BRKT
Sweat Connections SW
Megatron Nucleus Installed
