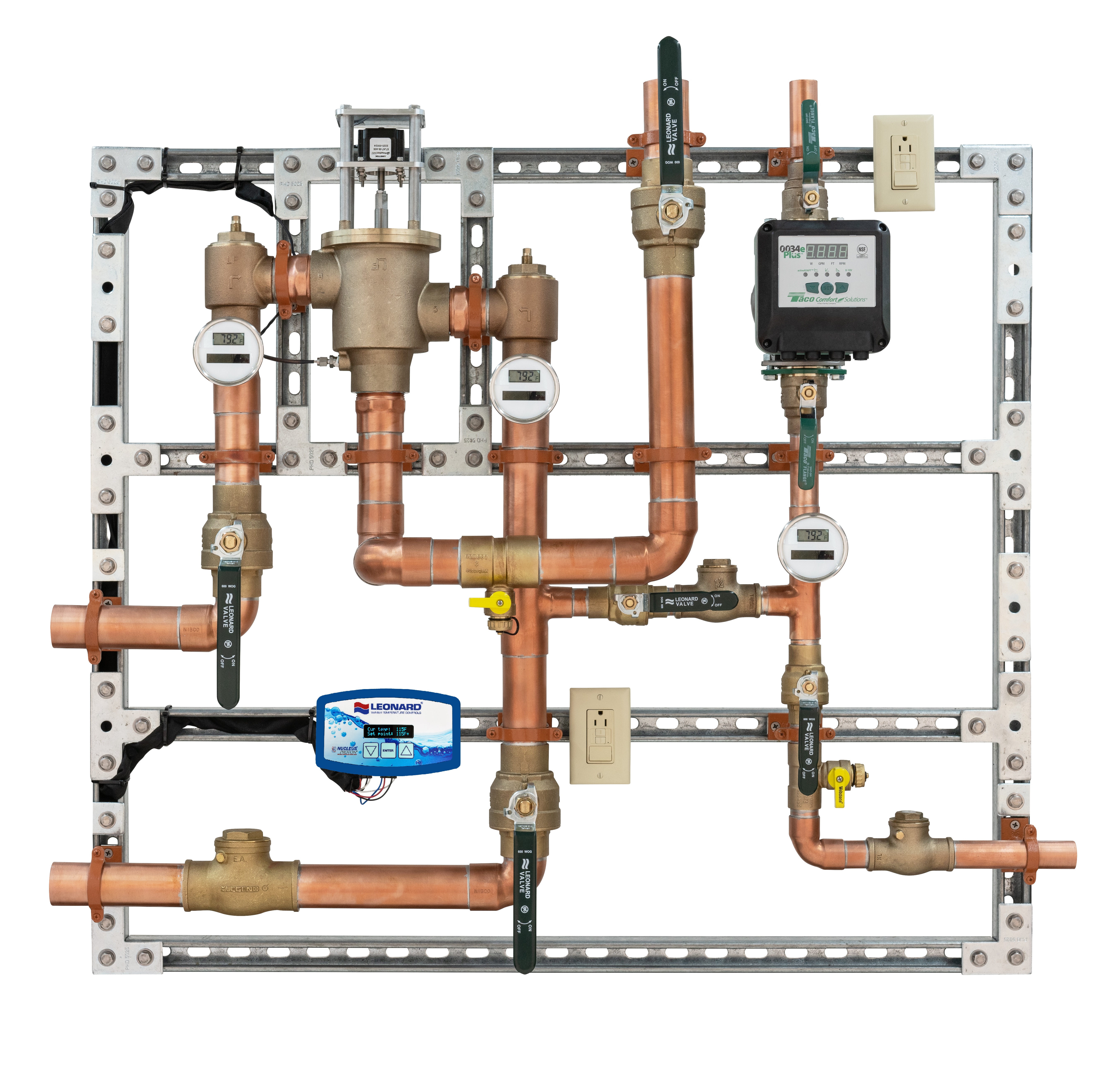

Complete Digital Water Temperature Control System with Optional Remote Monitoring

Megatron Proton Electronic Mixing Valves - PNV-150-LF-M

•    Digital Mixing Valve with 1-1/4” inlet angled check  stops, 1-1/2” Outlet and integral RTD Sensor
•    1-1/4" NPT inlets, 1-1/2" NPT outlet (32mm X 38mm)
•    0.25 GPM** (0.95 L/min) minimum flow capacity
•    Maximum operating pressure: 125 PSIG (869 KPA)
•    Controls water temperature to ± 2°F in accordance with ASSE 1017
•    Controls water temperature to ± 2°F during times of low / no
system demand
•    Automatic Hot/Cold Water shutoff upon cold/ hot water inlet supply failure
•    User programmable set point range between 65°F and 180°F
•    UL Listed Control Box
•    UL Listed 120V plug in power supply with 6’ cord
•    Simple and intuitive user commissioning and setup
•    Factory assembled and tested

Specification
Inlets 1 1/4"
Minimum Flow(GPM) .25
Outlet 1 1/2"
Options
Back up Power Supply up to two hours in case of power loss BPS
Internet of Things-Modbus to WiFi gateway to cloud IOT
Megatron Nucleus Installed
