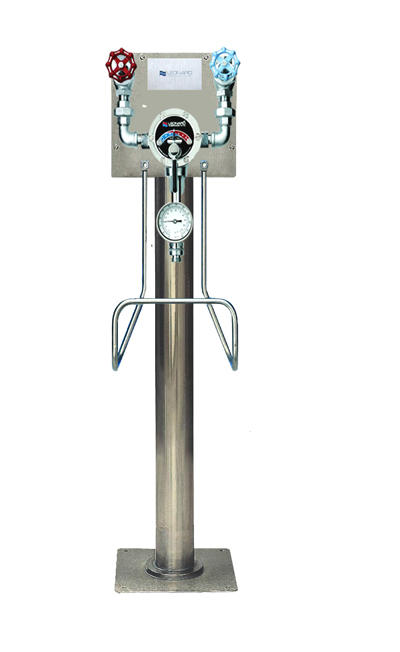

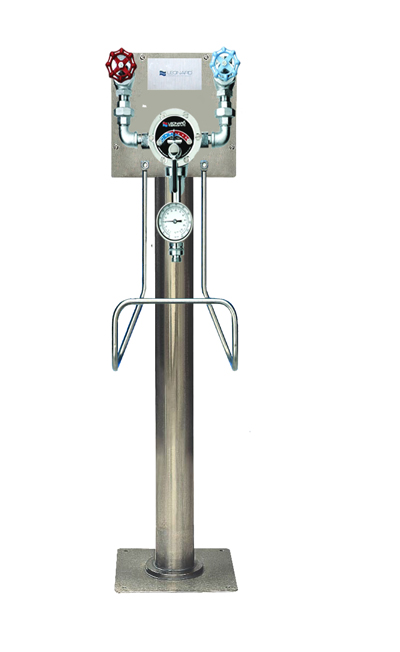

Floor Mounted Pedestal Unit

Floor Mounted Pedestal Unit - THS-25-PVBD-LF

· Two stop and check valves with color coded heat resistant handles on inlets, (internal parts of stainless steel construction) · Thermostatic Mixing Valve for steam and water or hot and cold water mixing. · DURA-trol® solid bimetal thermostat directly linked to valve porting · Color coded scale: Cold to Hot · Adjustable high temperature limit stop · Heat resistant temperature adjusting lever · Integral wall support · Chrome plated finish · Stainless steel hose rack · Outlet with dial thermometer (20 to 240ºF, -5 to 115ºC) · Backflow preventer, hose connection · Chrome plated finish · Stainless steel hose rack · Third Party Verified as Lead Free

Downloads
Specification
Inlets (IPS) 3/4"
Maximum Flow(GPM) 18
Outlet 3/4"
Overall Height 51"
Overall Width 12"
