Floor Mounted Pedestal Unit

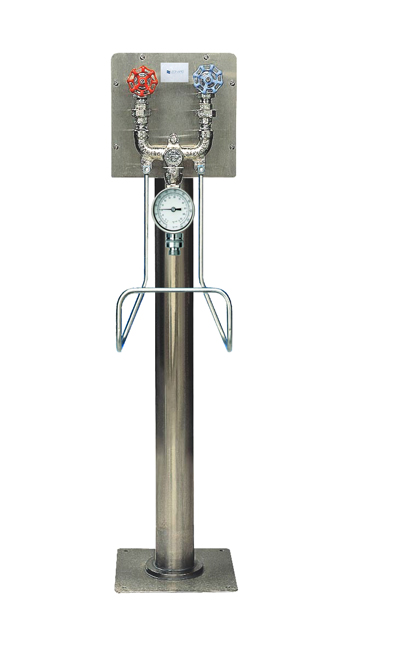

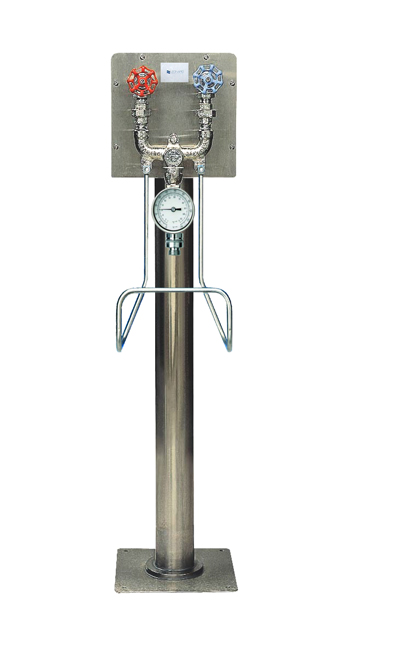

Floor Mounted Pedestal Unit - SW-75-PVBD-LF

· Two stop and check valves with color coded heat resistant handles on inlets, (internal parts of stainless steel construction) · Mixing chamber with steam jet, (stainless steel)for steam and water or hot and cold water mixing · Integral wall support · 3/4" outlet with dial thermometer (20 to 240ºF, -5 to 115ºC) · Backflow preventer with hose connection · Chrome plated finish · Stainless steel hose rack · 80 PSI (5.5 bar) maximum operating steam pressure · 125 PSI (8.6 bar) maximum operating water pressure · Third Party Verified as Lead Free

Downloads
Specification
Inlets 3/4"
Maximum Flow(GPM) 9
Outlet 3/4"
Overall Height 51"
Overall Width 12"
