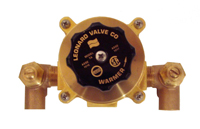

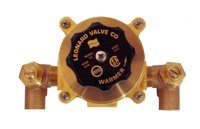

Bi-metal TA Lead Free Master Mixing Valve

LF Thermostatic Mixing Valve - TA-LF-F

ECO-MIX ™ Thermostatic water mixing valve, DURA-trol® solid bimetal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature or pressure fluctuations. DURA-trol® is highly responsive and cannot be damaged by extremes in temperature. 1/2” Sweat inlets and outlet, 0.5 GPM (1.9 l/m) minimum flow capacity. Integral combination checkstops, Internal parts of lead free bronze, lead free brass, and stainless steel, Integral wall support, Temperature selector handle, HOT-COLD with directional indicators, Maximum operating pressure 125 PSI (860 KPA), Adjustable high temperature limit stop set for 110º F (49º C), Locking temperature adjustment knob
Repair Kits
VALVE REPAIR KIT - KIT R/TA/N
CHECK REPAIR KIT - SEE O&M
Downloads
Specification
Inlets 1/2"
Maximum Flow(GPM) 9
Minimum Flow(GPM) .5 GPM
Outlet 1/2"
Overall Depth 3.5"
Overall Height 5"
Overall Width 7"
Description
Baked White Exposed Cabinet BWE-EXP
Baked White Recessed Cabinet BWE-REC
Chrome Plated Finish CP
Separate (loose) color coded Dial Thermometer 37C
Stainless Steel Exposed Cabinet STSTL-EXP
Stainless Steel Recessed Cabinet STSTL-REC
Top Inlets TOP
Viewport in Cabinet Door VIEW
Megatron Nucleus Installed
