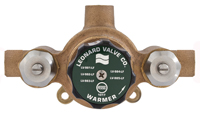

Wax Lead Free Master Mixing Valve

LF Thermostatic Mixing Valves - LV-981A-LF

ECO-MIX ™ Thermostatic Water Mixing Valve with 2.5 GPM (9 l/min) minimum flow capacity, ¾” inlets, ¾” outlet (19mm x 19mm), Integral combination checkstops with strainers, 125 PSI (8.6 BAR) maximum operating pressure. Copper encapsulated thermostatic assembly with Teflon coated brass shuttle, Locking temperature regulating handle, Top or bottom supply/outlet connections, Internal parts of bronze, brass, and stainless steel, Integral wall support for easy mounting. Rough Bronze Finish NOTE: This product is available in sweat connections only. This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight
Repair Kits
VALVE REPAIR KIT - KIT R/LV981
CHECK REPAIR KIT - KIT 4/M20
Downloads
Specification
Inlets 3/4"
Maximum Flow(GPM) 44
Minimum Flow(GPM) 2.5
Outlet 3/4"
Overall Depth 6"
Overall Width 7.5"
Description
Ball valve and Dial Thermometer BDT
Inlet Thermometers IT
Less Wall Support LWS
Megatron Nucleus Installed
