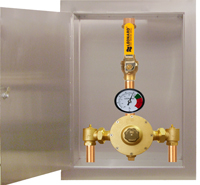

Wax LV-186 Cabinet Assembly

LF Cabinet Assembly - LV-186-984-LF-STSTL-REC

Thermostatic water mixing valve, Copper encapsulated thermostatic assembly with Teflon coated shuttle Lead free (ECO-MIX ™) Combination checkstops, unions on inlets, wall support Locking temperature regulating handle. Tempered outlet ball valves, Color coded dial thermometer (0 to140ºF, -10º to 60ºC). Recessed Stainless Steel cabinet, with door, left hand hinge and flange, cylinder lock, Rough Bronze finish. Bottom inlets, top outlet Factory assembled and tested Valve assembly is certified to meet Low-Lead requirements of wetted surface area containing less than 0.25% lead by weight. All other fittings and components, the sum total of which comprise the wetted surface of this product contains less than one quarter of one percent of lead by weight.

Downloads
Specification
Inlets 1 1/4"
Maximum Flow(GPM) 141
Minimum Flow(GPM) 6
Outlet 1 1/2"
Overall Depth 9"
Overall Height 26"
Overall Width 24"
Description
Baked White Exposed Cabinet BWE-EXP
Baked White Recessed Cabinet BWE-REC
Chrome Plated Finish CP
Right Hand Hinge RHH
Stainless Steel Exposed Cabinet STSTL-EXP
Top Inlets TOP
Viewport in Cabinet Door VIEW
Megatron Nucleus Installed
