Wax LV-203 Cabinet Assembly

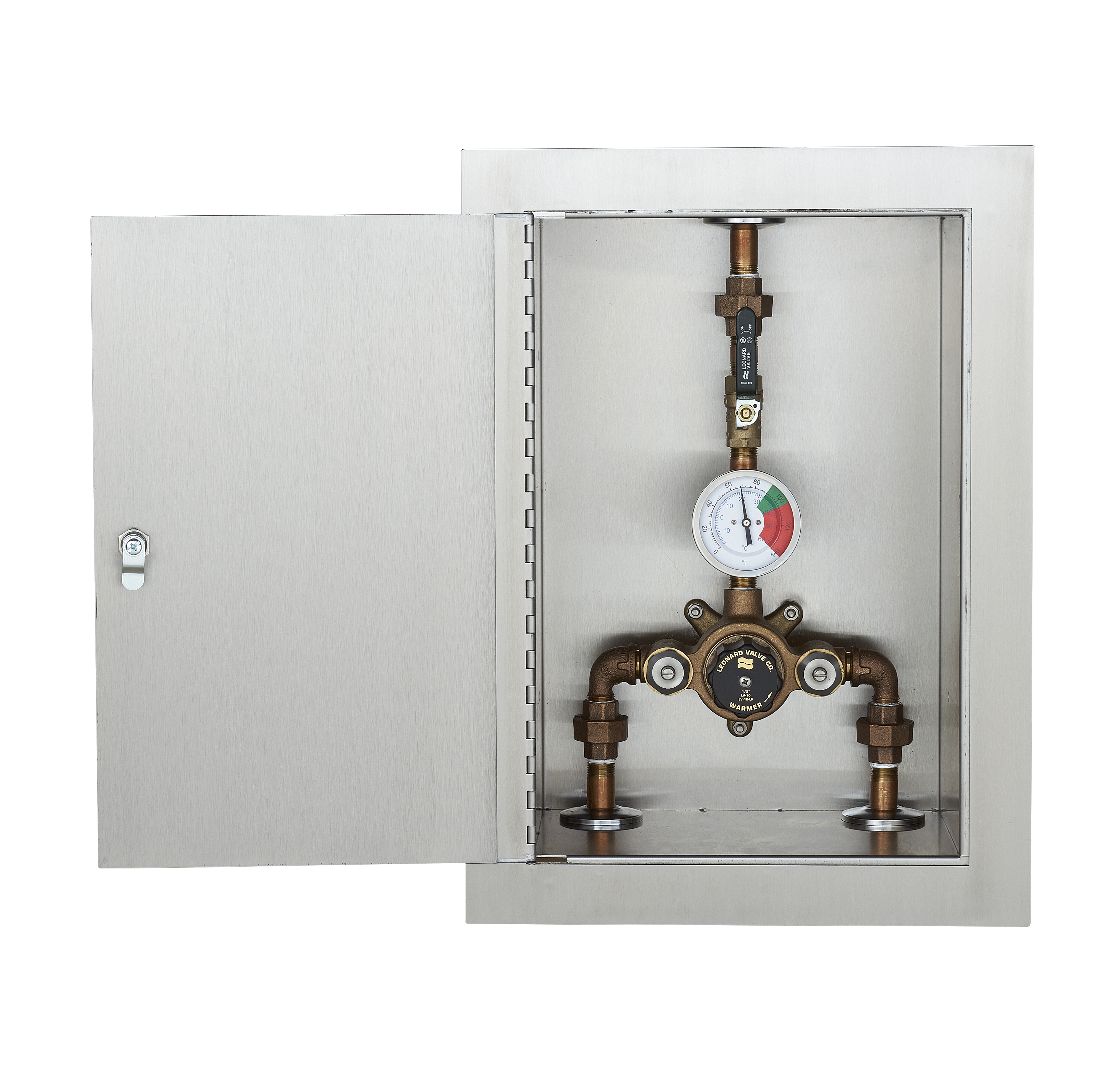

LF Cabinet Assembly - LV-203-10-LF-STSTL-REC

ECO-MIX ™ Thermostatic Water Mixing Valve with 0.5 GPM (1.9 l/min) minimum flow capacity 1/2” inlets, 1/2" outlet (12.7 mm x 12.7mm), Integral combination checkstops with wall support 125 PSI (8.6 BAR) maximum operating pressure, Copper encapsulated thermostatic assembly with Teflon coated stainless steel shuttle, Locking temperature regulating handle, Internal parts of stainless steel, brass, bronze, Integral wall support for easy mounting, Rough Bronze Finish, Adjustable high temperature limit stop set for 110ºF (43ºC), Bottom inlets, Top outlet with Ball valve on outlet, Color-coded dial thermometer (25 to 125ºF, 0 to 50ºC), Temperature adjustment range, 90-140ºF (32-60ºC), Factory assembled and tested, Recessed Stainless steel cabinet, door, left hand hinge, cylinder lock Valve assembly is certified to meet Low-Lead requirements of wetted surface area containing less than 0.25% lead by weight. All other fittings and components, the sum total of which comprise the wetted surface of this product contains less than one quarter of one percent of lead by weight.

Repair Kits
VALVE REPAIR KIT - KIT R/XL32
CHECK REPAIR KIT - KIT 4/M20
Downloads
Specification
Inlets 1/2"
Maximum Flow(GPM) 15
Minimum Flow(GPM) 1
Outlet 1/2"
Overall Depth 8"
Overall Height 18"
Overall Width 12"
Description
Baked White Exposed Cabinet BWE-EXP
Baked White Recessed Cabinet BWE-REC
Chrome Plated Finish CP
Semi Recessed 4" Deep SEMI
Stainless Steel Exposed Cabinet STSTL-EXP
Stainless Steel Recessed Cabinet STSTL-REC
Top Inlets TOP
Viewport in Cabinet Door VIEW
