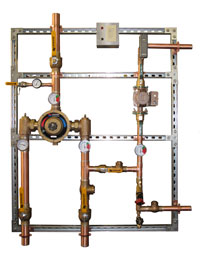

Wax Lead Free Complete Water Temperature Control Station

LF Megatron - Model XL-200-SW-LF

Lead Free 2” bottom inlets 2” top outlet (copper tube) 1” return line size with piping method #W Locking temperature regulating handle set for full port ball valve, pressure gauge on mixed water outlet piping of mixing valve. Dial thermometer and pressure gauge on mixed water outlet of the system. Outlet Test Connection with ball valve and ¾” hose connection with cap Inlet piping manifold with full port ball valves and dial thermometers on supply inlets. Return piping, 1” with aquastat, circulator, dial thermometer balancing valve (with positive shutoff) to balance system, and check valve Aquastat, Circulator wiring box to include a GFCI switch, red and green lights. The GFCI switch will be used to turn the circulator on or off for setup. Bypass piping, ¾”, with check valve and isolation ball valve to cold inlet of mixing valve System mounted on strut, galvanized. Factory pre-assembled and tested as a complete system

Repair Kits
VALVE REPAIR KIT - KIT R/XL200
CHECK REPAIR KIT - KIT 2/200/C
Downloads
Specification
Inlets 2"
Maximum Flow(GPM) 208
Minimum Flow(GPM) 5
Outlet 2"
Overall Height 68"
Overall Width 55"
Return Piping Size 1"
Megatron Nucleus Installed
