Lead free thermostatic mixing valve

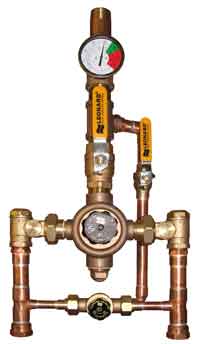

LF Thermostatic Mixing Valve - XL-690-LF-DT

ECO-MIX ™ High Low Thermostatic Water Mixing Valve with 0.5 GPM (1.9 l/min) minimum flow capacity, 1 GPM (3.8 l/min) to ASSE 1069 1” inlets, 1-1/4” outlet (25mm x 32 mm), Dial Thermometer on outlet, Test Connection (ship loose), Integral combination check-stops with strainers and wall support, 125 PSI (8.6 BAR) maximum operating pressure with temperature control down to 0.5 GPM (1.9 l/min), Copper encapsulated thermostatic element assemblies with Teflon coated shuttle, Locking temperature regulating handle set for 120°F(49°C), Internal parts of stainless steel Rough bronze finish This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight

Repair Kits
LARGE VALVE REPAIR KIT - KIT R/XL82
LARGE VALVE CHECK REPAIR KIT - KIT 2/690

SMALL VALVE REPAIR KIT - KIT R/269
SMALL VALVE CHECK REPAIR KIT - SEE O&M
Downloads
Specification
Inlets 1"
Maximum Flow(GPM) 65
Minimum Flow(GPM) 1
Outlet 1 1/4"
Description
Chrome Plated Finish CP
Inlet Thermometers IT
Megatron Nucleus Installed
