Cabinet Assembly

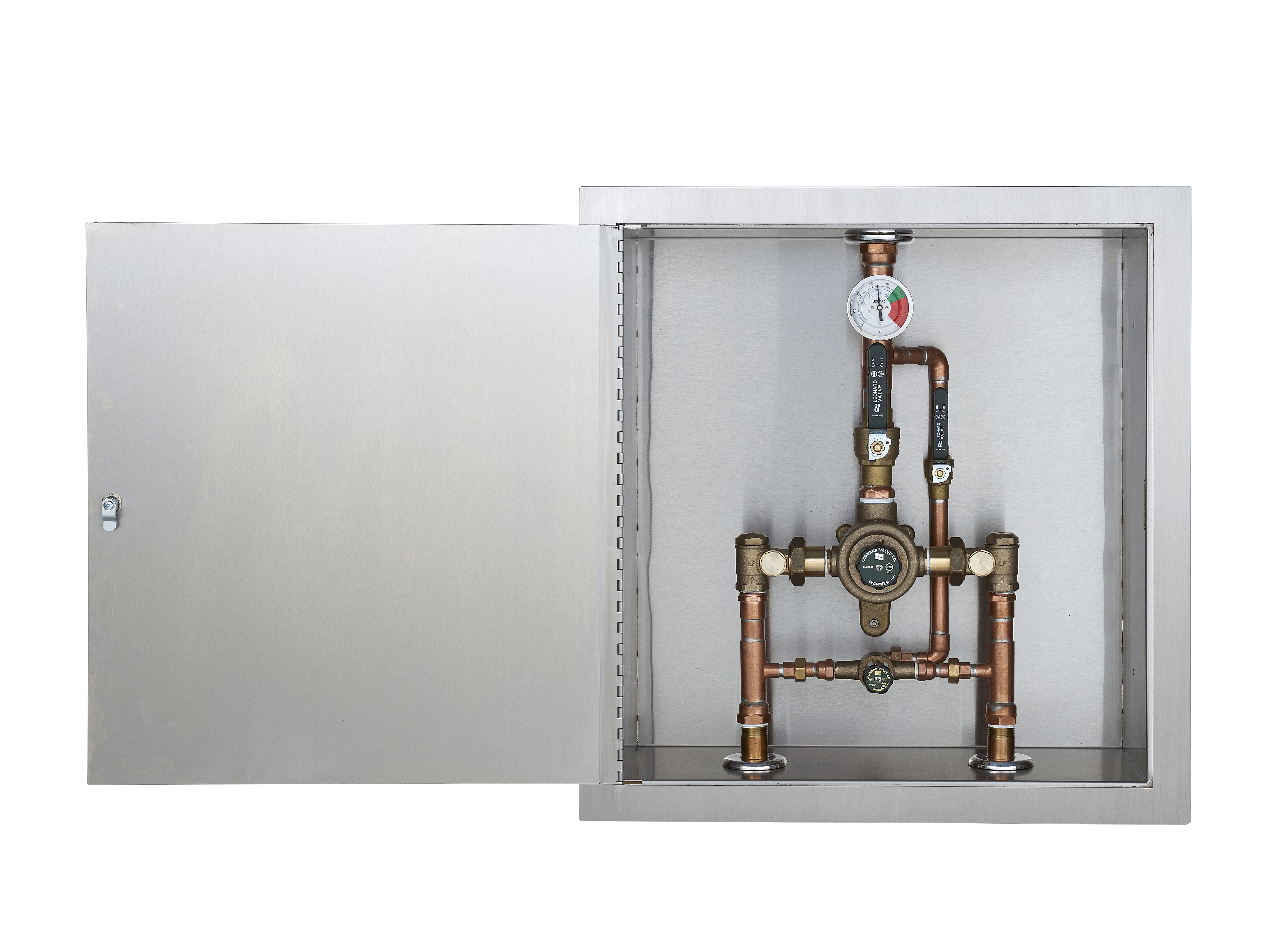

LF Thermostatic Mixing Valve - XL-186-690-LF-STSTL-REC

Eco Mix High Low Thermostatic Water Mixing Valve with 0.5 GPM (1.9 l/min) minimum flow capacity, 1 GPM (3.8 l/min) to ASSE 1069 1” inlets, 1-1/4” outlet (25mm x 32 mm) Adjustable high temperature limit stop set for 120ºF (49ºC) Combination checkstops, unions, strainers on inlets wall support, Outlet volume control / shutoff, Color coded dial thermometer (0 to140ºF, -10º to 60ºC) Temperature adjustment range, 90-140 ºF (32-60 ºC) Bottom inlets, top outlet Factory assembled and tested. This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight

Repair Kits
LARGE VALVE REPAIR KIT - KIT R/XL82
LARGE VALVE CHECK REPAIR KIT - KIT 2/690

SMALL VALVE REPAIR KIT - KIT R/269
SMALL VALVE CHECK REPAIR KIT - SEE O&M
Downloads
Specification
Inlets 1"
Maximum Flow(GPM) 65
Minimum Flow(GPM) 1
Outlet 1 1/4"
Overall Depth 9"
Overall Height 26"
Overall Width 24"
Description
Baked White Exposed Cabinet BWE-EXP
Baked White Recessed Cabinet BWE-REC
Right Hand Hinge RHH
Stainless Steel Exposed Cabinet STSTL-EXP
Megatron Nucleus Installed
