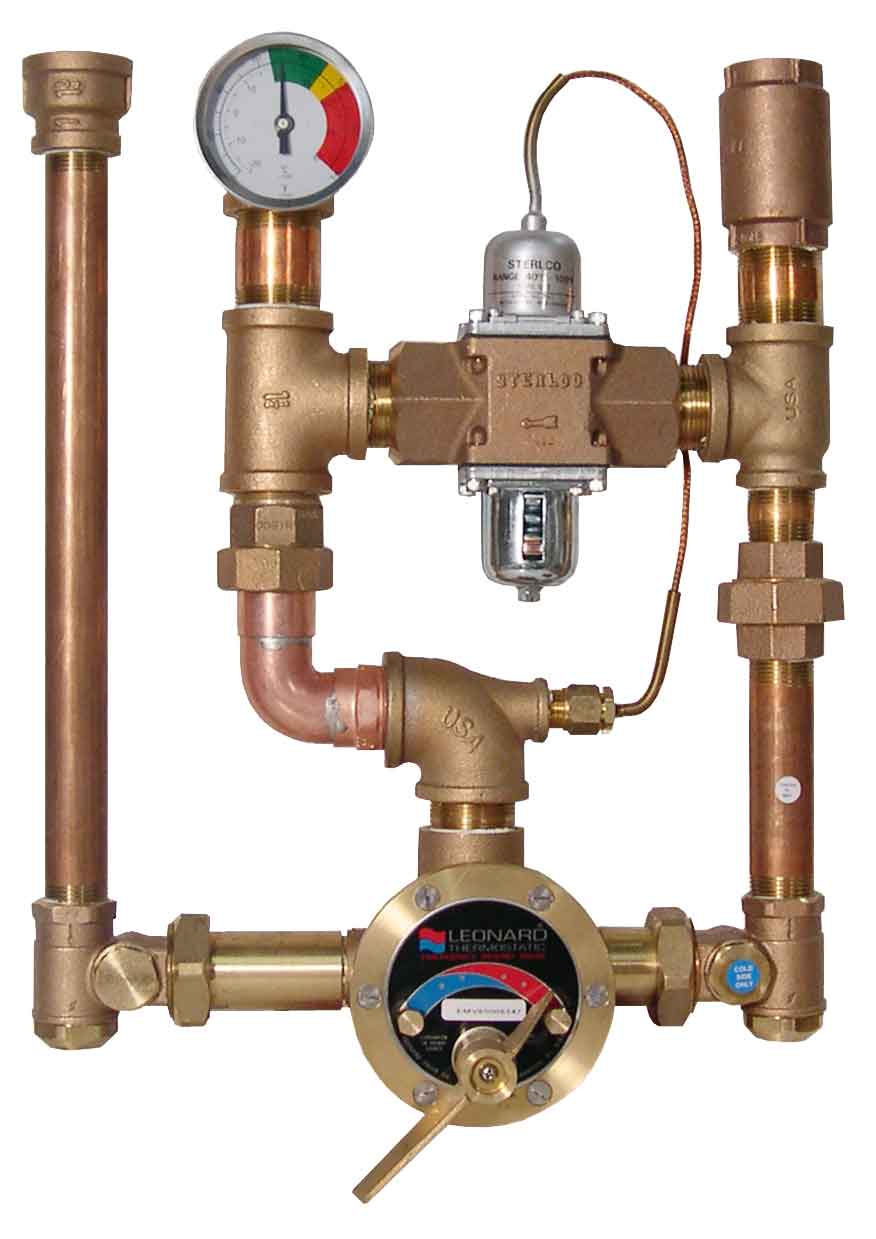

Emergency Mixing Valve System with Temperature Override Protection

Single or Multiple Drench/Combination Shower - TM-850-LF

• DURA-trol® solid bimetal thermostat directly linked to valve porting . DURA-trol® is highly responsive and cannot be damaged by extremes in temperature • Primary valve can be set to the correct temperature for the application. • Locking temperature regulator to prevent accidental movement set for 85ºF (29ºC) • Primary mixing valve will close down on failure of cold water supply • Primary Mixing Valve with special internal cold water bypass capable of 20 GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply • Adjustable high temperature limit stop set for 90ºF (32ºC) • Dial thermometer (range 0 to 140°F, -10 to 60°C) • Union Angle checkstops with strainers on inlets • Secondary Thermostatic Control factory locked @ 90°F, 32°C(adjustable from 40°F to 100°F, 4°C to 32°C) to allow cold water to enter the outlet side of the Primary mixing valve. • Rough bronze finish To determine the amount of Hot Water needed to maintain a steady outlet temperature for 15 minutes, click Hot Water Requirements. This guide is not meant to be used as a means to size the hot water heaters but rather to illustrate consumption.
Repair Kits
VALVE REPAIR KIT - KIT R/50M
CHECK REPAIR KIT - KIT 2/50M
Downloads
Specification
Inlets 1 1/4"
Maximum Flow(GPM) 64
Minimum Flow(GPM) 3
Outlet 1 1/4"
Weight (pounds) 40
Options
Inlet Thermometers IT
Megatron Nucleus Installed
