LMS-188-4P-BMS - LMS-188-4P-BMS

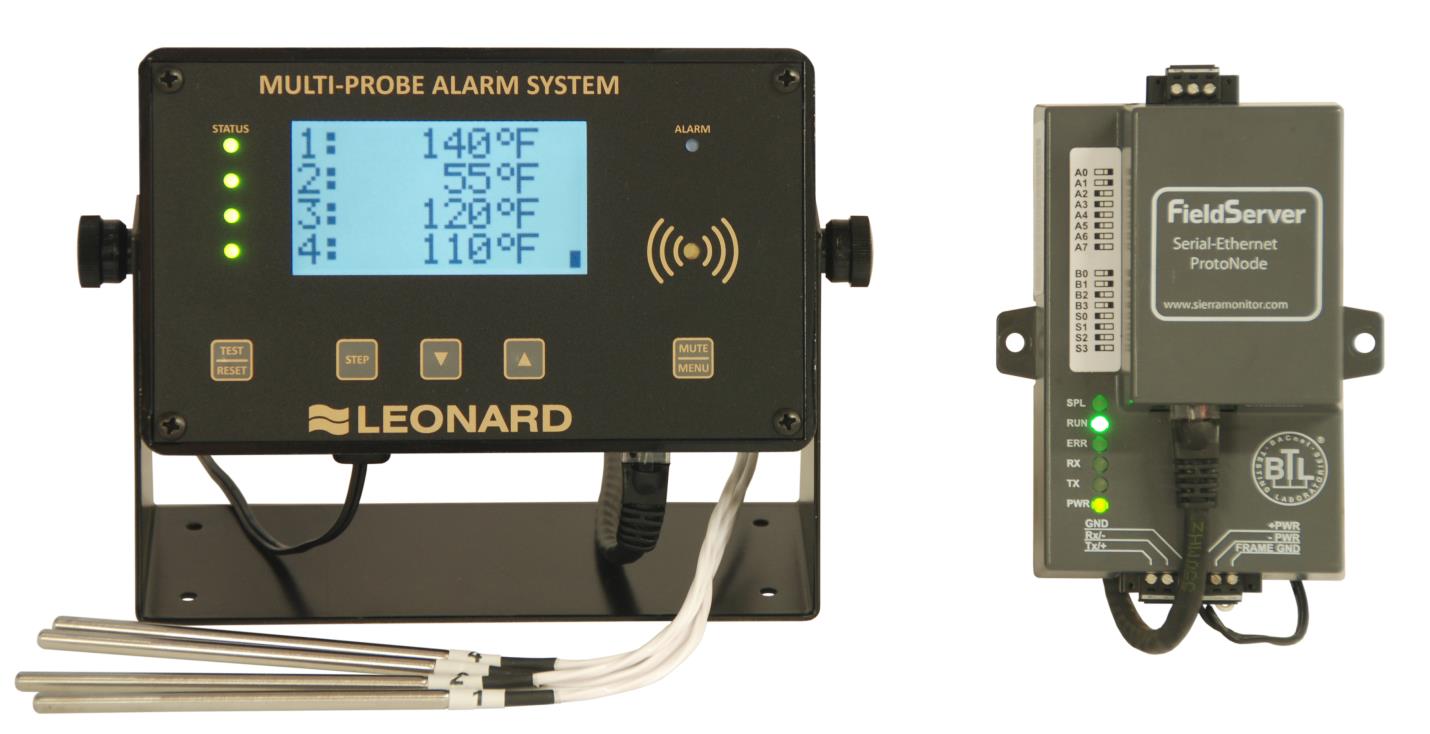

Primary Alarm Box includes: Four (4) Temperature Probes - Range: -148ºF to 212ºF Resolution: 1ºF User adjustable high & low set points and initial alarm delay period Audio & visual alarms Min./Max. temperature values Remote alarm contacts (SPDT) with adjustable relay period Battery Back-up, 3.7V, 1150 mAh Li-polymer cell with built in constant current / constant voltage charger with automatic recharge and “low battery” indication 4 each 100 ohm RTD sensors, 4” length with 10’ lead wire UL listed 100-240VAC power supply w/6’ cord Mounting bracket Electronic NIST traceable certificate of calibration on file ProtoNode Accessory Box includes: Interface Module to connect LMS-188-4P-BMS to Building Management System(-BMS) Network Complete Protocol Package Supported protocols include BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP/IP, SNMP, JC N2 All configurations available simply by selecting the proper DIP switches Cat 5 Ethernet Cable not included Consult local national codes: conformity and compliance to local and national codes is the responsibility of the installer.
