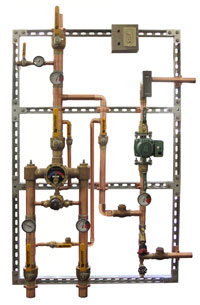

Bi-metal Lead Free Complete Water Temperature Control Station
LF Megatron - Megatron 6NB-LF
ECO-MIX ™ Large thermostatic water mixing valve with DURA-trol solid bimetal thermostat, adjustable high temperature limit stop, color-coded dial, locking temperature regulator, inlet union angle strainer checkstops. Full port ball valve, pressure gauge on mixed water outlet piping of large mixing valve. Small thermostatic water mixing valve, adjustable high temperature limit stop, color-coded dial, integral checkstops on inlets. Full port ball valve on outlet of small mixing valve. Dial thermometer and pressure gauge on mixed water outlet of the system. Outlet Test Connection with ball valve and ¾” hose connection with cap. Full port ball valve mounted downstream of test connection. Inlet piping manifold with full port ball valves and dial thermometers on hot and cold supply inlets. Return piping, ¾”, with aquastat, circulator, dial thermometer, balancing valve, and check valve. System mounted on strut, Factory pre-assembled and tested. All electrical connections to be completed by Electrical Contractor Valve assembly is certified to meet Low-Lead requirements of wetted surface area containing less than 0.25% lead by weight. All other fittings and components, the sum total of which comprise the wetted surface of this product, contain less than one quarter of one percent of lead by weight.
|Return Piping Size||1 1/4"|
