Lead free thermostatic mixing valve

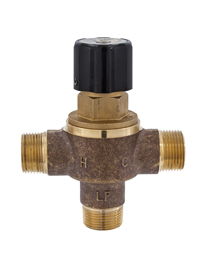

LF Thermostatic Mixing Valve - 369-LF

ECO-MIX ™ Lead Free Bronze body, Locked temperature adjustment cap (vandal resistant), Copper encapsulated thermostat assembly, with polymer thermoplastic shuttle, Stainless steel springs, Buna-N: O-rings, Integral check valves on hot and cold inlets This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight
Downloads
Specification
Inlets 3/4"
Maximum Flow(GPM) 12
Minimum Flow(GPM) 1
Outlet 3/4"
Overall Height 5"
Overall Width 4"
Options
Ball Valve BV
Chrome Plated Finish CP
Dial Thermometer on Outlet DT
Mounting Bracket BRKT
Sweat Connections SW
Megatron Nucleus Installed
