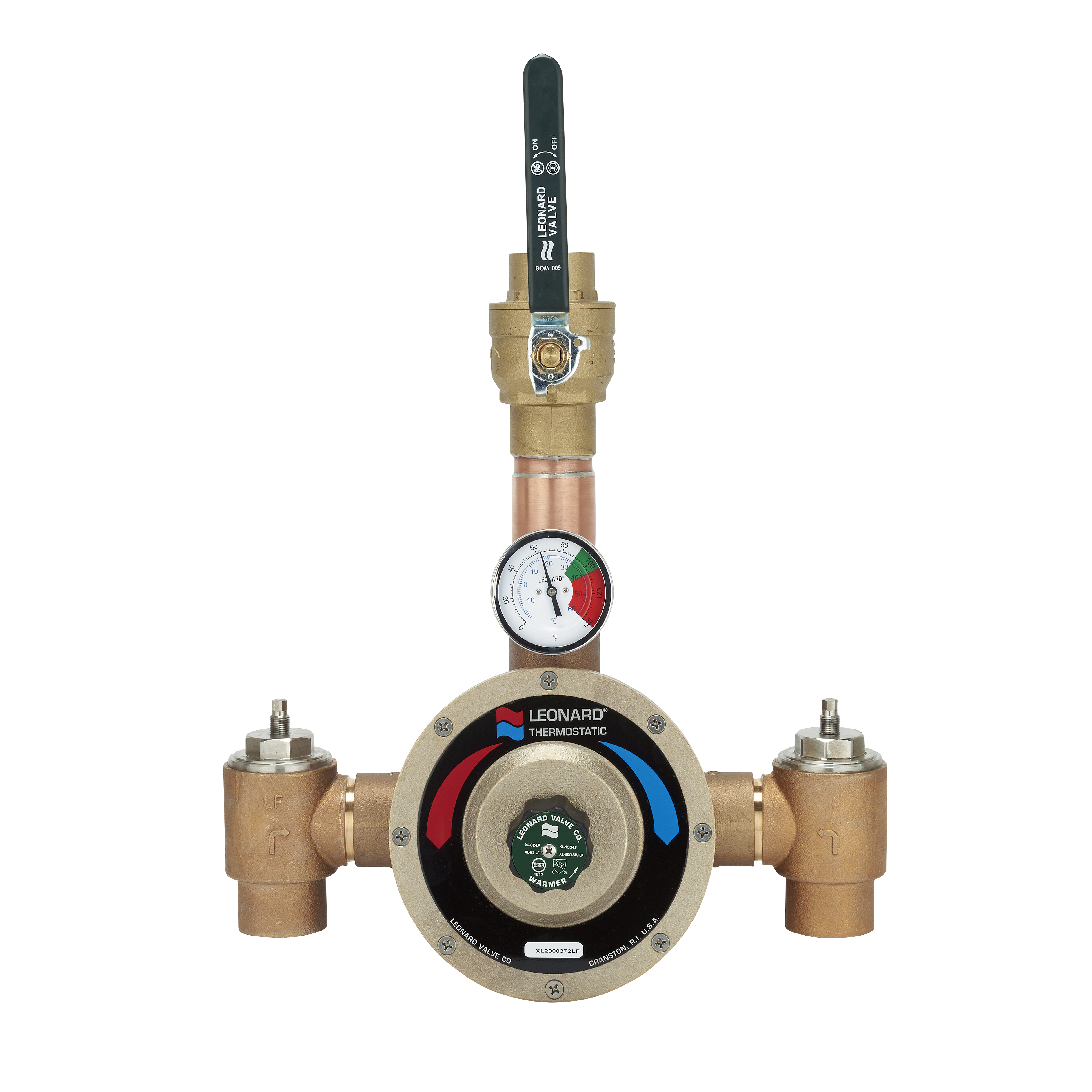

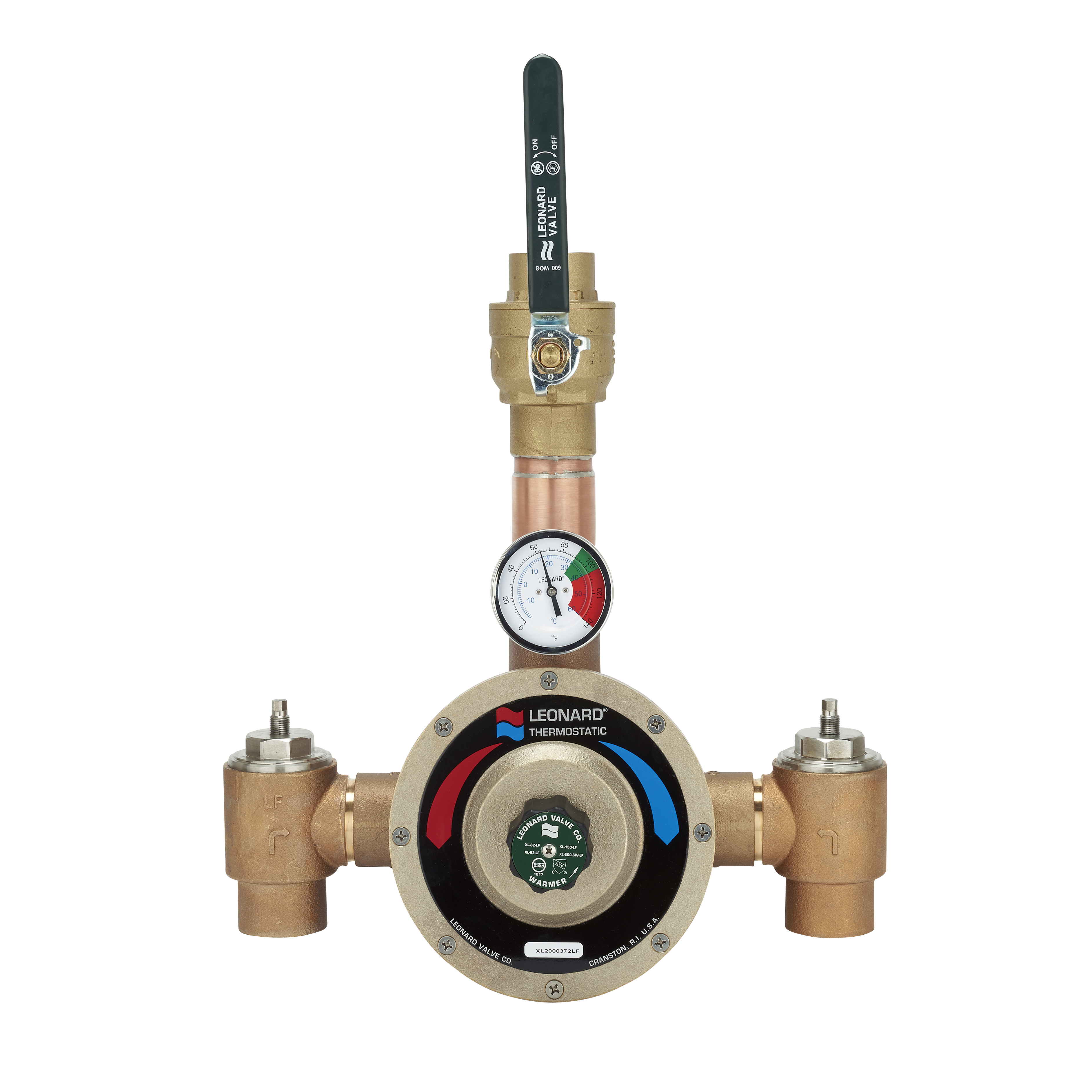

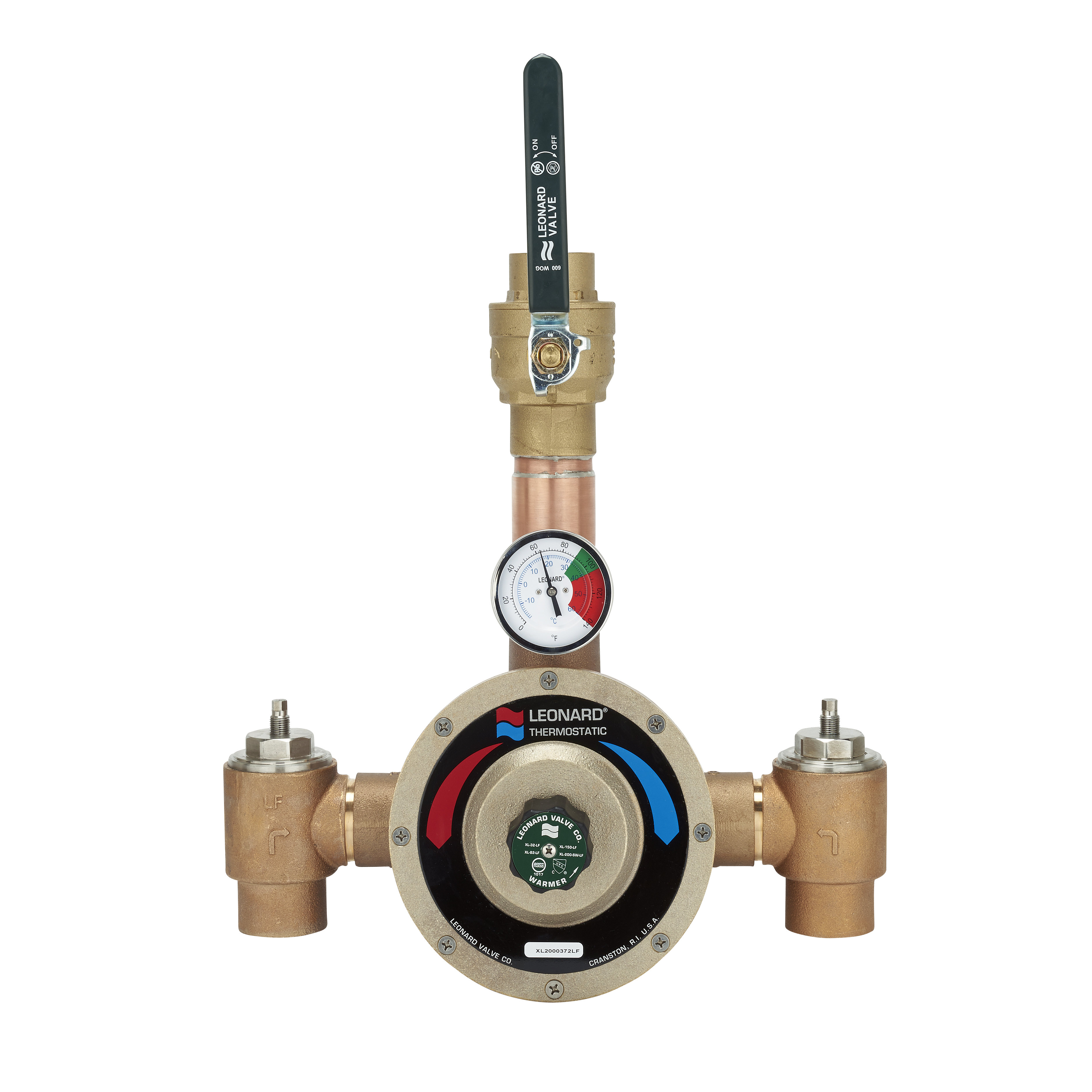

Paraffin Wax Technology Master Mixing Valve with Sweat Valves, Exposed Assembly
LF Thermostatic HL Mixing Valve - XL-200-SW-LF-BDT
ECO-MIX ™
Thermostatic Water Mixing Valve with integral combination checkstops with strainers. 125 PSI (8.6 BAR) maximum operating pressure, Copper encapsulated thermostatic assembly with Stainless Steel shuttle, Temperature adjustment range, 95-135ºF (35-57ºC)locking temperature regulating handle. Internal parts stainless steel, integral wall support for easy mounting, rough bronze finish. NOTE: Sweat inlets & outlet, checks shipped loose
Valve is certified to meet Low-Lead requirements of wetted surface area containing less than 0.25% lead by weight.
Repair Kits
VALVE REPAIR KIT - KIT R/XL200
CHECK REPAIR KIT - KIT 2/200/C
CHECK REPAIR KIT - KIT 2/200/C
Downloads
Specification
| Inlets | 2" |
| Maximum Flow(GPM) | 208 |
| Minimum Flow(GPM) | 5 |
| Outlet | 2" |
| Overall Depth | 9 3/8" |
| Overall Width | 16.5 |
| Weight (pounds) | 46 |
Options
| Less Wall Support | LWS |
