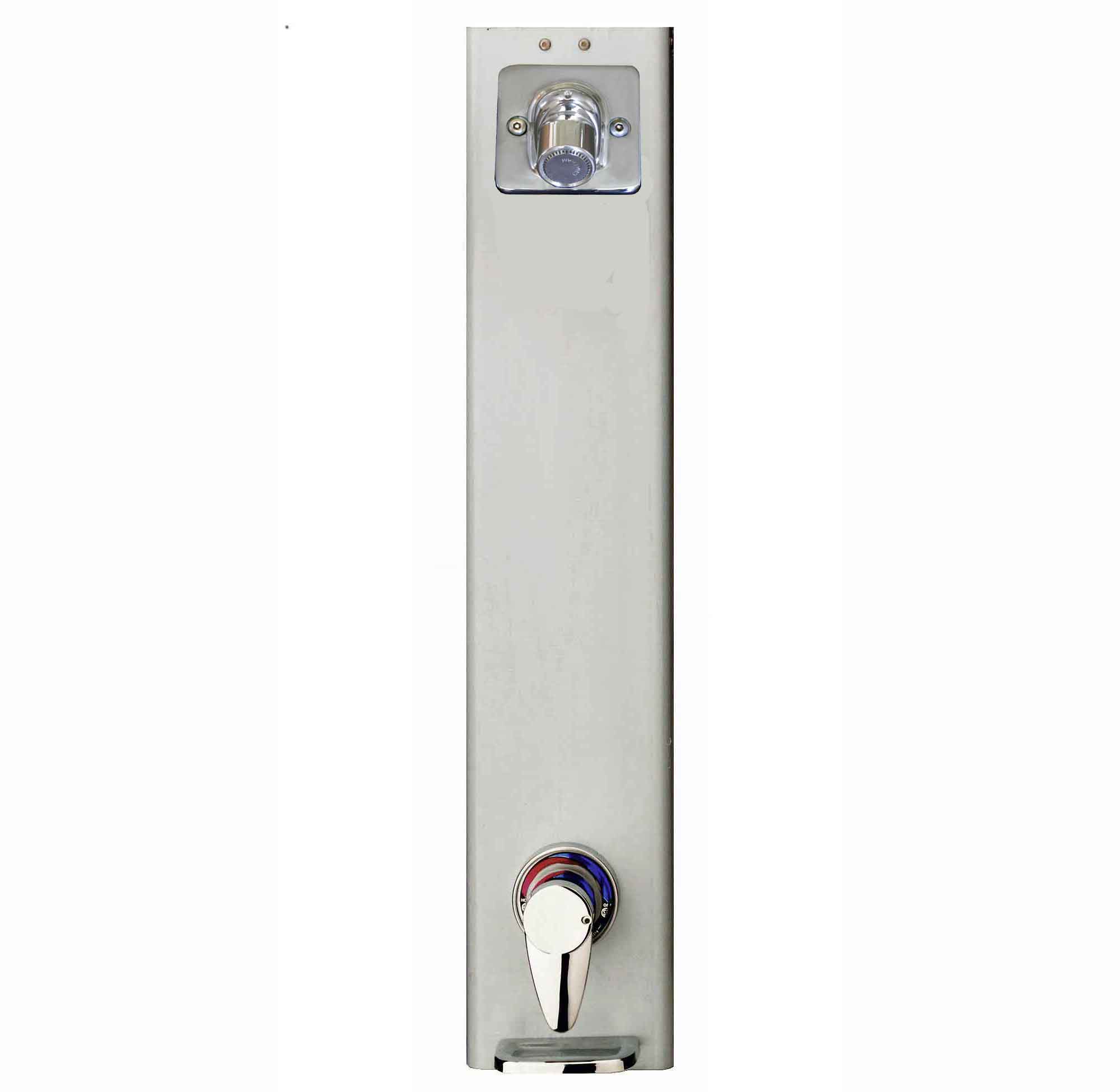

PAM® -II, Pressure Actuated Shower Mixer
Stainless steel pressure balancing piston
Built-in shutoff for single handle operation
Adjustable high temperature limit stop set for 110°F* (43°C)
Integral check stops, soap dish
H-06 institutional shower head, 2.5 GPM (9.5 l/min.) max
Special cast mounting bracket
Factory pre-assembled, 18 gauge stainless steel cover, #4 finish, with sloping top cap, regular bottom cap.
Exposed parts chrome plated, vandal-resistant.
1/2” flexible stainless hose on inlets.
Maximum operating pressure: 125 PSI (860 KPA)
|3ISA models only, adjustable shower head ||ADJ|
|Back inlet connections ||BC|
|Integral stainless steel extension to ceiling, specify length ||VX|
