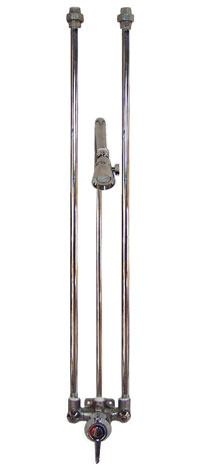

Exposed Wall Mounted Shower System
Surfashower® - SS-PAM-201-E
SS-PAM-201-E Surfashower®
PAM-II, pressure-actuated shower mixer
Durable stainless steel pressure balancing
piston
Built-in shutoff for single handle operation
Color-coded dial, OFF through HOT
Adjustable high temperature limit stop set
for 110°F (43°C)
Integral checkstops with female adapters,
supply risers with
unions
Integral cast mounting bracket
Outlet gooseneck, pipe support
H-01 (AC-11) ball joint shower head,
volume control, 2.5 GPM (9.5 l/min.) max.
1/2” IPS connections
Maximum supply pressure: 125 PSI (860 KPA)
Downloads
Specification
| Inlets | 1/2" |
