Multiple Drench Shower Valve

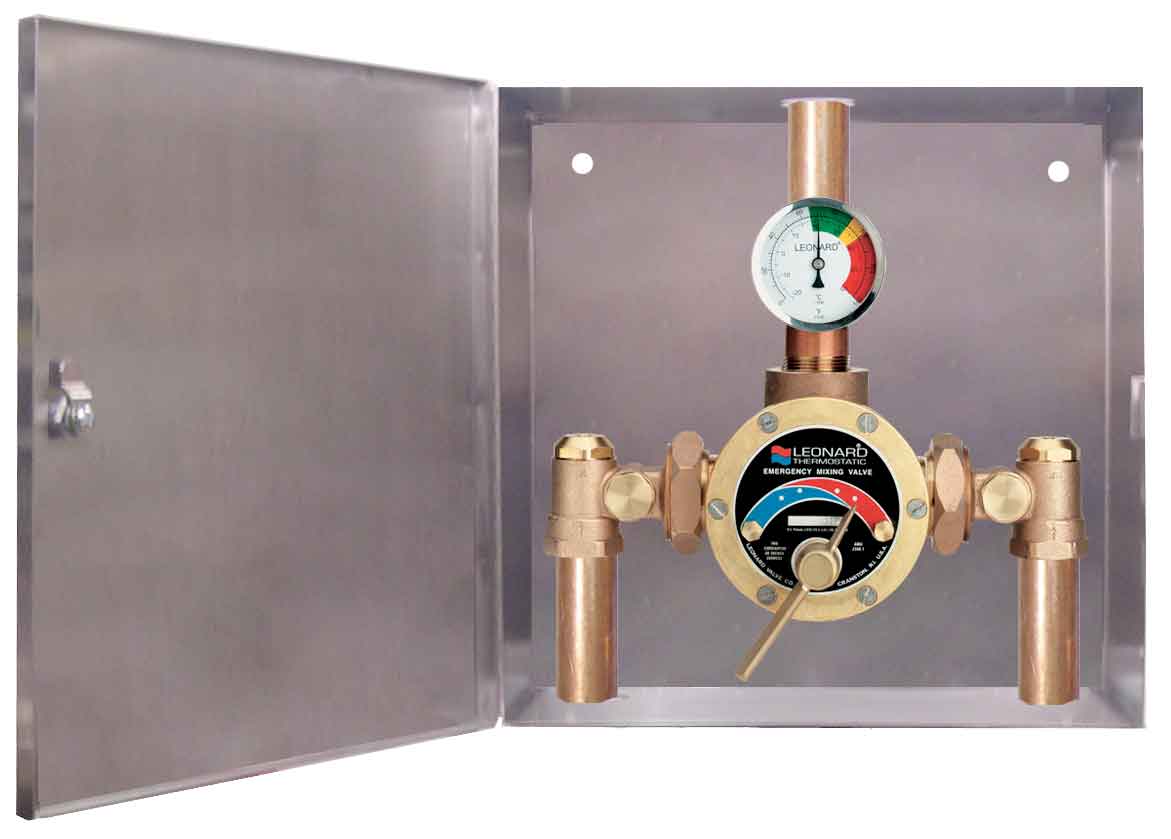

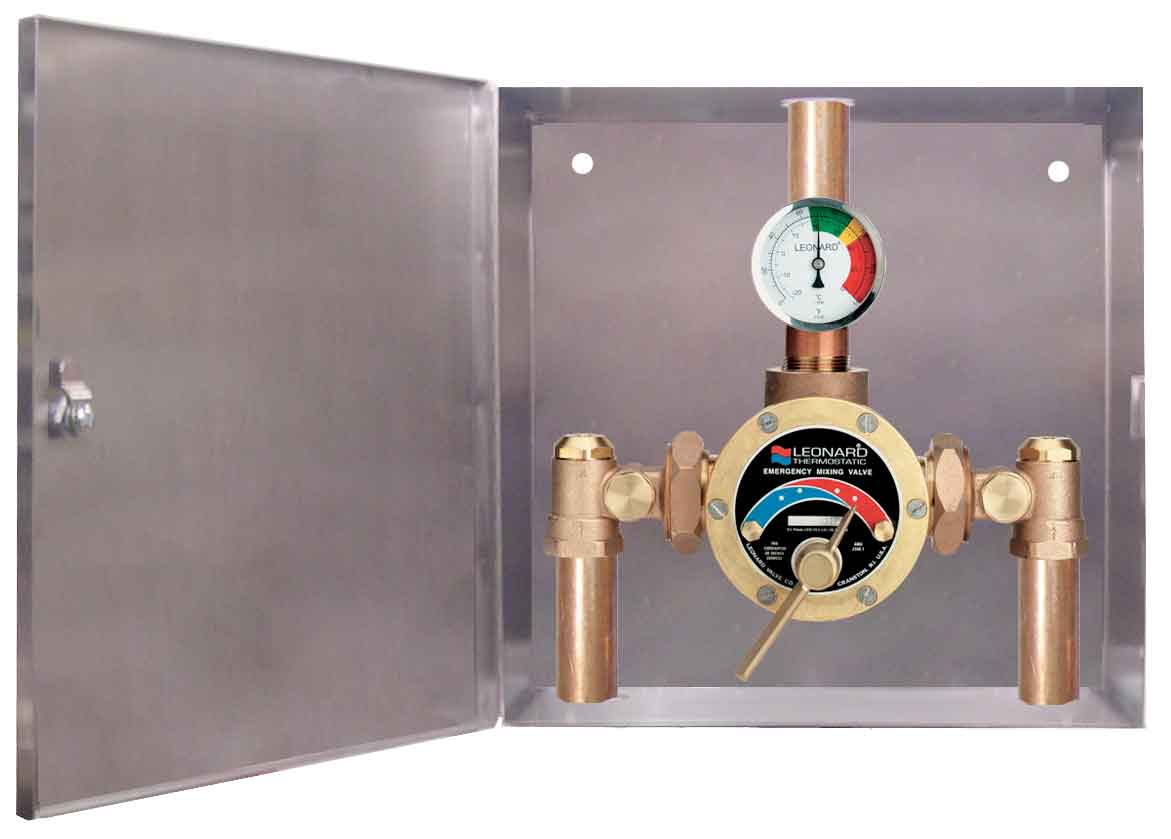

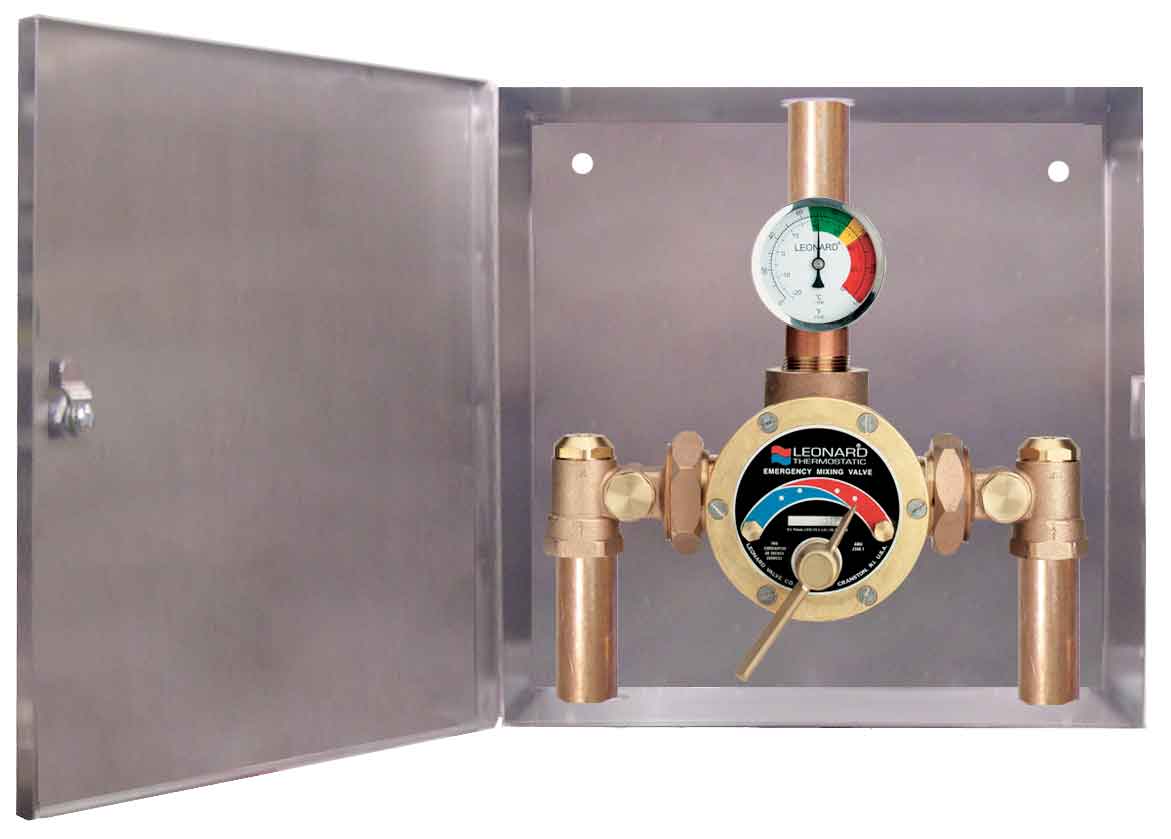

LF Multiple Drench Shower Valve - TM-5100-LF-STSTL-EXP

ECO-MIX ™ DURA-trol® solid bimetal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature and pressure fluctuations. DURA-trol® is highly responsive and cannot be damaged by extremes in temperature. Thermostatic Mixing Valve can be set to the correct temperature for the application. Locking temperature regulator to prevent accidental movement set for 85°F (29°C), Recommended Hot Inlet Temperature 140°F. Mixing valve will close down on failure of cold water supply. Mixing valve with special internal cold water bypass capable of 40 GPM (151 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply. Adjustable high temperature limit stop * set for 90°F, (32°C)Integral wall support, Full 1 1/4” bottom or top inlets and 1 1/2” top outlet, Integral wall support, Dial thermometer (range 0 to 140°F, -10 to 60°C), Rough bronze finish, Exposed stainless steel cabinet with hinged door and cylinder lock, Union Angle checkstops on inlets To determine the amount of Hot Water needed to maintain a steady outlet temperature for 15 minutes, click Hot Water Requirements. This guide is not meant to be used as a means to size the hot water heaters but rather to illustrate consumption. This product provides tepid water per the requirements of ANSI Z358.1 This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight
Repair Kits
Cold Water Bypass 40 GPM
Inlets 1 1/4"
Maximum Flow(GPM) 126 GPM
Minimum Flow(GPM) 3 GPM
Outlet 1 1/2"
Overall Depth 8"
Overall Height 16"
Overall Width 16"
Baked White Exposed Cabinet BWE-EXP
Baked White Recessed Cabinet BWE-REC
Inlet Thermometers IT
Top Inlets TOP
Viewport in Cabinet Door VIEW
Megatron Nucleus Installed
