Wax Lead Free Complete Water Temperature Control Station

LF Megatron - Megatron 370-LF

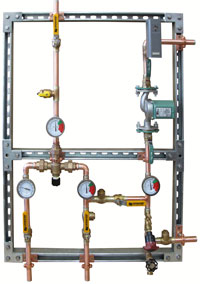

ECO-MIX ™ 3/4” bottom inlets, 3/4" top outlet connection (copper tube) ¾” return line size with piping method #W. Locking temperature regulating handle set for Full port ball valve, pressure gauge on mixed water outlet piping of mixing valve. Dial thermometer and pressure gauge on mixed water outlet of the system. Outlet Test Connection with ball valve and ¾” hose connection with cap. Inlet piping manifold with full port ball valves and dial thermometers on supply inlets. Return piping, 3/4”, with aquastat, circulator, dial thermometer balancing valve(with positive shutoff) to balance system, and check valve Aquastat, Circulator wiring box to include a GFCI switch, red and green lights. The GFCI switch will be used to turn the circulator on or off for setup. Bypass piping, 1/2”, with check valve and isolation ball valve to cold inlet of mixing valve System mounted on strut, galvanized. Factory pre-assembled and tested as a complete system Valve assembly is certified to meet Low-Lead requirements of wetted surface area containing less than 0.25% lead by weight. All other fittings and components, the sum total of which comprise the wetted surface of this product, contain less than one quarter of one percent of lead by weight.
Inlets 3/4"
Maximum Flow(GPM) 13
Minimum Flow(GPM) 0.5
Outlet 3/4"
Overall Height 43"
Overall Width 33 1/2"
Audio Visual Alarm AL
Building Management System Interface BMSI
Floor Mount FM
Free Standing FS
Less Circulator LC
Megatron Nucleus Installed
