Emergency Mixing Valve for Single/Multiple Drench Shower and Eye/Eye Face Wash Units - EXL-800-LF
Single/Multiple Emergency Drench Shower Combination Units - EXL-800-LF

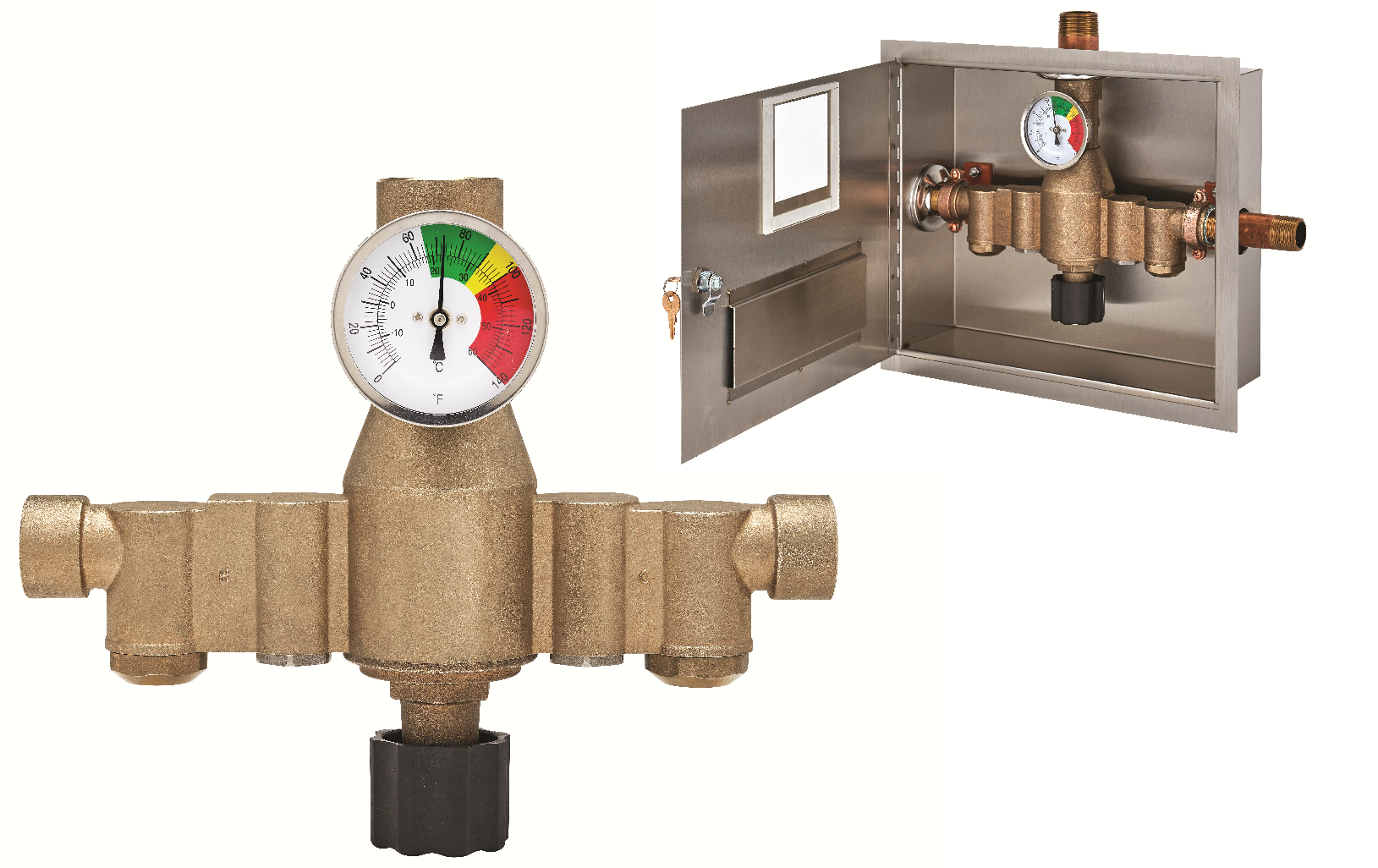

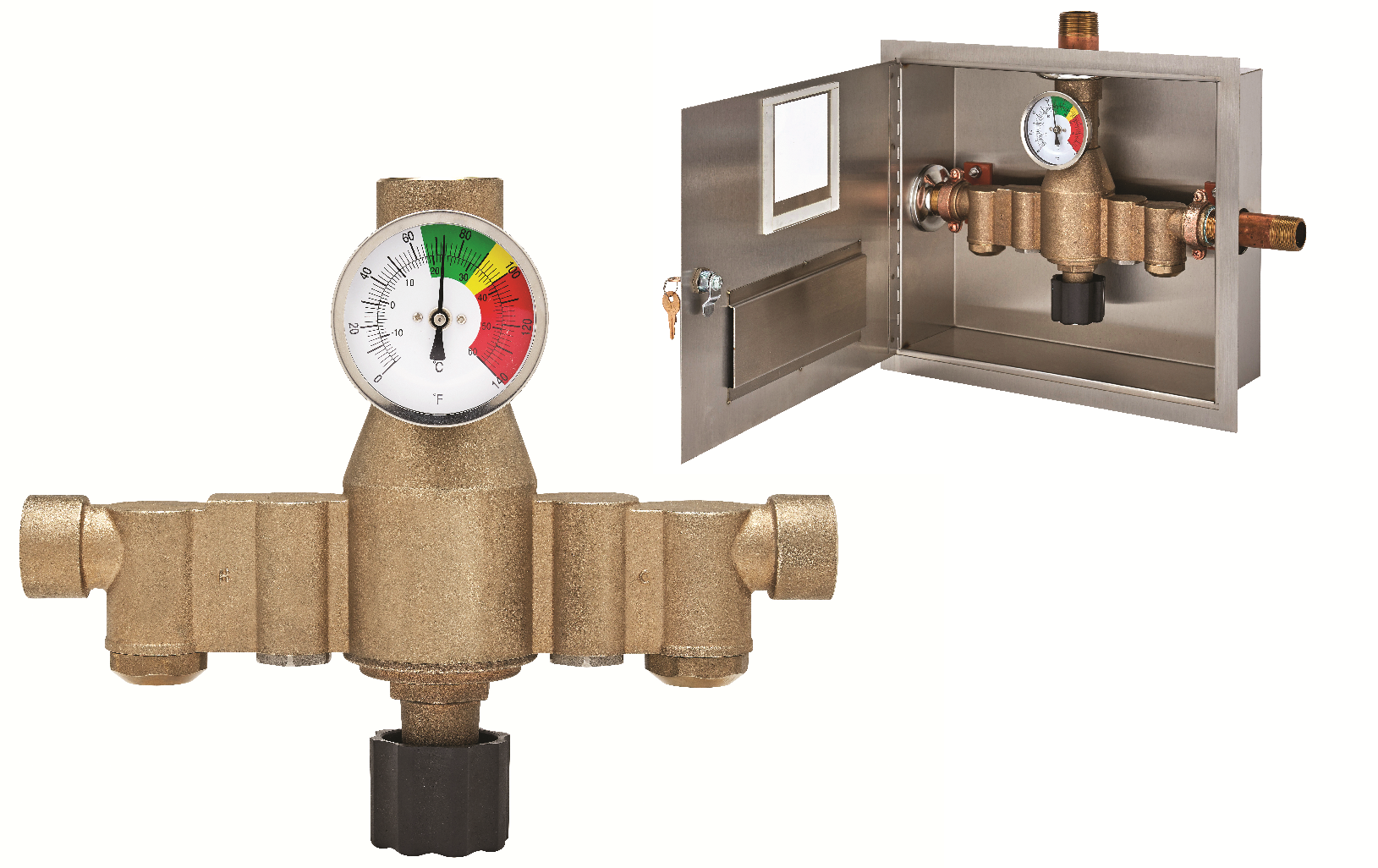

This High-Performance Thermostatic Emergency Mixing Valve is designed for drench shower/eye/face wash applications and can be set to the correct temperature for user application.
The EXL-800-LF Paraffin Technology EMV will shut down on failure of cold water supply and has a special, internal cold water bypass capable of a minimum of 20 GPM (75.7 L/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply.
With an adjustable high temperature limit stop [set for 90°F (32°C)], and locking temperature regulator to prevent accidental movement you can depend upon the EXL-800-LF for both safety and performance.
The EXL-800-LF Paraffin Technology EMV will shut down on failure of cold water supply and has a special, internal cold water bypass capable of a minimum of 20 GPM (75.7 L/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply.
With an adjustable high temperature limit stop [set for 90°F (32°C)], and locking temperature regulator to prevent accidental movement you can depend upon the EXL-800-LF for both safety and performance.
Downloads
Specification
| Cold Water Bypass | 20 GPM |
| Inlets | 1" |
| Maximum Supply Pressure | 125 PSIG (862KPA) |
| Minimum Supply Pressure | 30 PSI (2.1 BAR) |
| Outlet | 1 1/4" |
