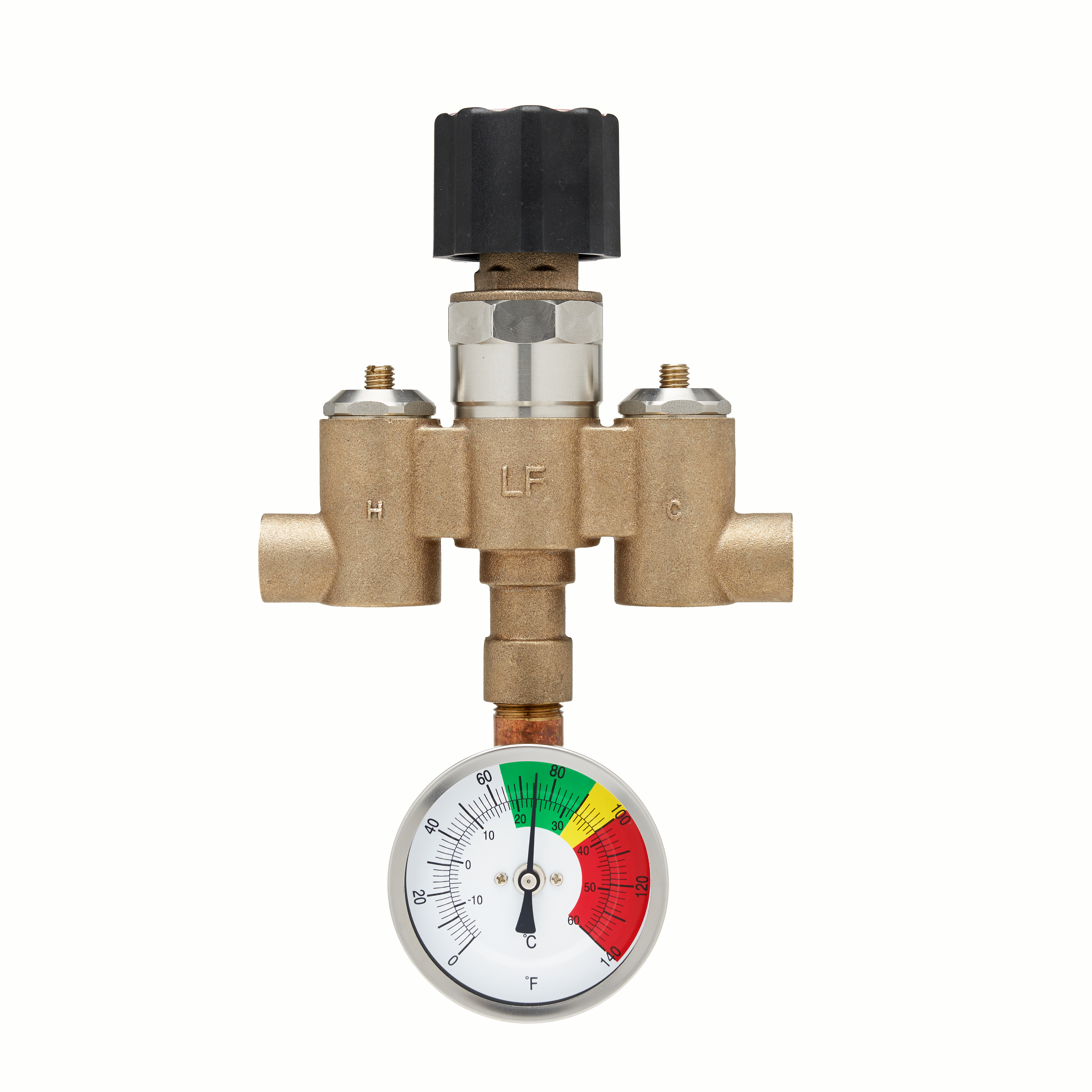

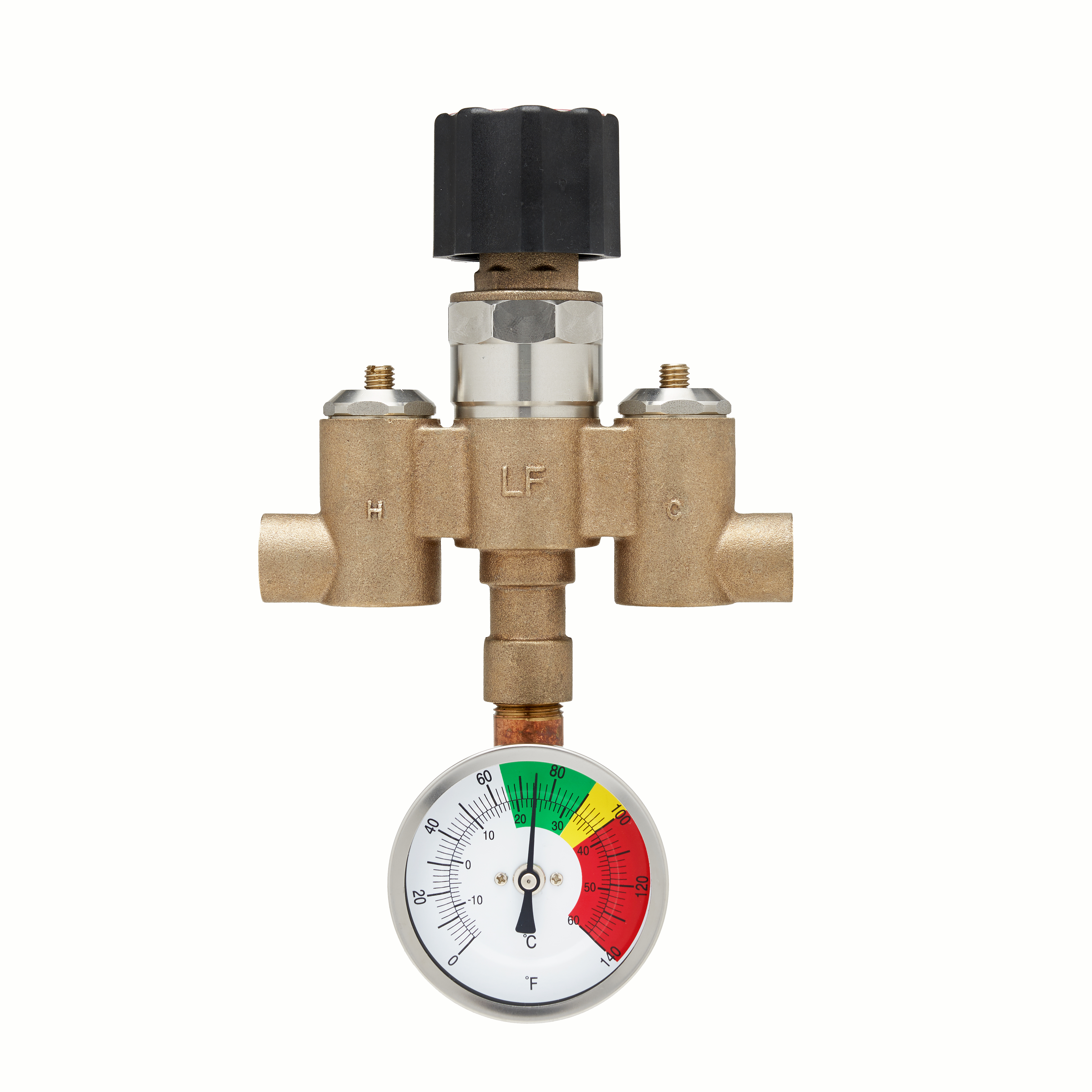

Emergency Mixing Valve for Single/Multiple Eye or Eye/Face Wash Units

Single/Multiple Emergency Eye/Eye-Face Wash Units - EXL-300-LF

This High-Performance Thermostatic Emergency Mixing Valve is designed for eye or eye/face wash applications and can be set to the correct temperature for user application.

The EXL-300-LF Paraffin Technology EMV will shut down on failure of cold water supply and has a special, internal cold water bypass capable of a minimum of 7 GPM (36.5 L/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply.

With an adjustable high temperature limit stop [set for 90°F (32°C)], and locking temperature regulator to prevent accidental movement you can depend upon the EXL-300-LF for both safety and performance.

Downloads
Specification
EXL-300 Cold Water Bypass 7 GPM
Inlets 1/2"
Maximum Supply Pressure 125 PSI (8.6 BAR)
Minimum Supply Pressure 30 PSI (2.1 BAR)
Outlet 1/2"
Megatron Nucleus Installed
