Eye/Face Wash

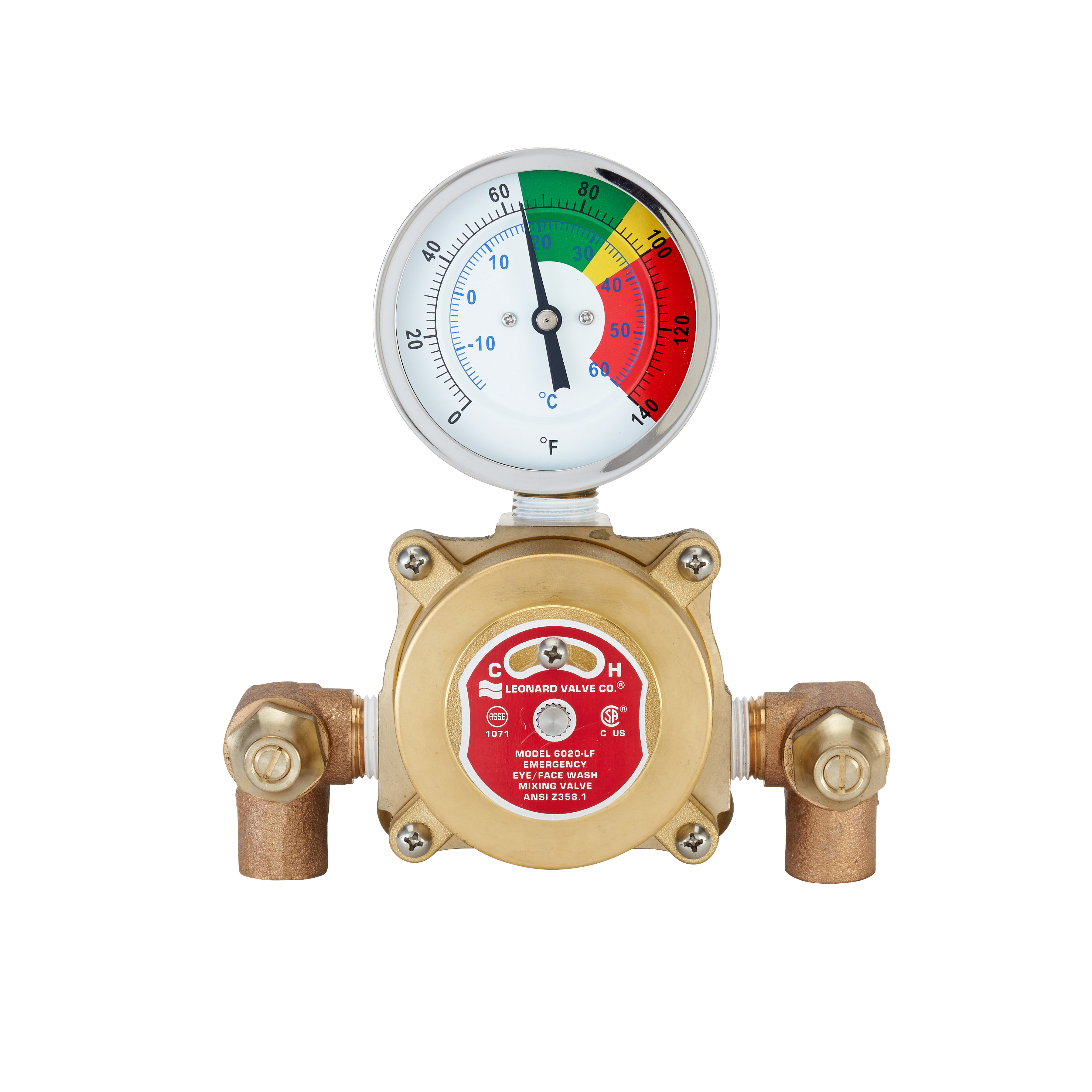

Emergency Eye Wash Valve - Model 6020-LF
DURA-trol® solid bimetal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature and pressure fluctuations.
DURA-trol® is highly responsive and cannot be damaged by extremes in temperature.
Thermostatic Mixing Valve can be set to the correct temperature for the application.
Locking temperature regulator to prevent accidental movement set for 85°F (29°C)
Mixing valve will close down on failure of cold water supply
Mixing valve with special internal cold water bypass capable of a minimum of 4 GPM (15 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply
Adjustable high temperature limit stop * set for 90°F (32°C)
Integral wall support
Sweat ½” top or bottom inlets
Threaded ½” top outlet
Rough bronze finish
Dial thermometer (range 0 to 140°F, -10 to 60°C)
Angle checkstops on inlets
Compliance…………ANSI Z358.1
Maximum supply temperature 180 °F (82°C)
Maximum supply pressure 125 PSI (8.6 Bar)
To determine the amount of Hot Water needed to maintain a steady outlet temperature for 15 minutes, click Hot Water Requirements. This guide is not meant to be used as a means to size the hot water heaters but rather to illustrate consumption. This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight
DURA-trol® is highly responsive and cannot be damaged by extremes in temperature.
Thermostatic Mixing Valve can be set to the correct temperature for the application.
Locking temperature regulator to prevent accidental movement set for 85°F (29°C)
Mixing valve will close down on failure of cold water supply
Mixing valve with special internal cold water bypass capable of a minimum of 4 GPM (15 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply
Adjustable high temperature limit stop * set for 90°F (32°C)
Integral wall support
Sweat ½” top or bottom inlets
Threaded ½” top outlet
Rough bronze finish
Dial thermometer (range 0 to 140°F, -10 to 60°C)
Angle checkstops on inlets
Compliance…………ANSI Z358.1
Maximum supply temperature 180 °F (82°C)
Maximum supply pressure 125 PSI (8.6 Bar)
To determine the amount of Hot Water needed to maintain a steady outlet temperature for 15 minutes, click Hot Water Requirements. This guide is not meant to be used as a means to size the hot water heaters but rather to illustrate consumption. This product is certified to meet Low Lead requirements of wetted surface area containing less than 0.25% lead by weight
Downloads
Options
| Chrome Plated Finish | CP |
| Inlet Thermometers | IT |
