Emergency Eye Wash Valve - Model 6040-LF

Exposed Assembly for Drench or

Combination Emergency Shower

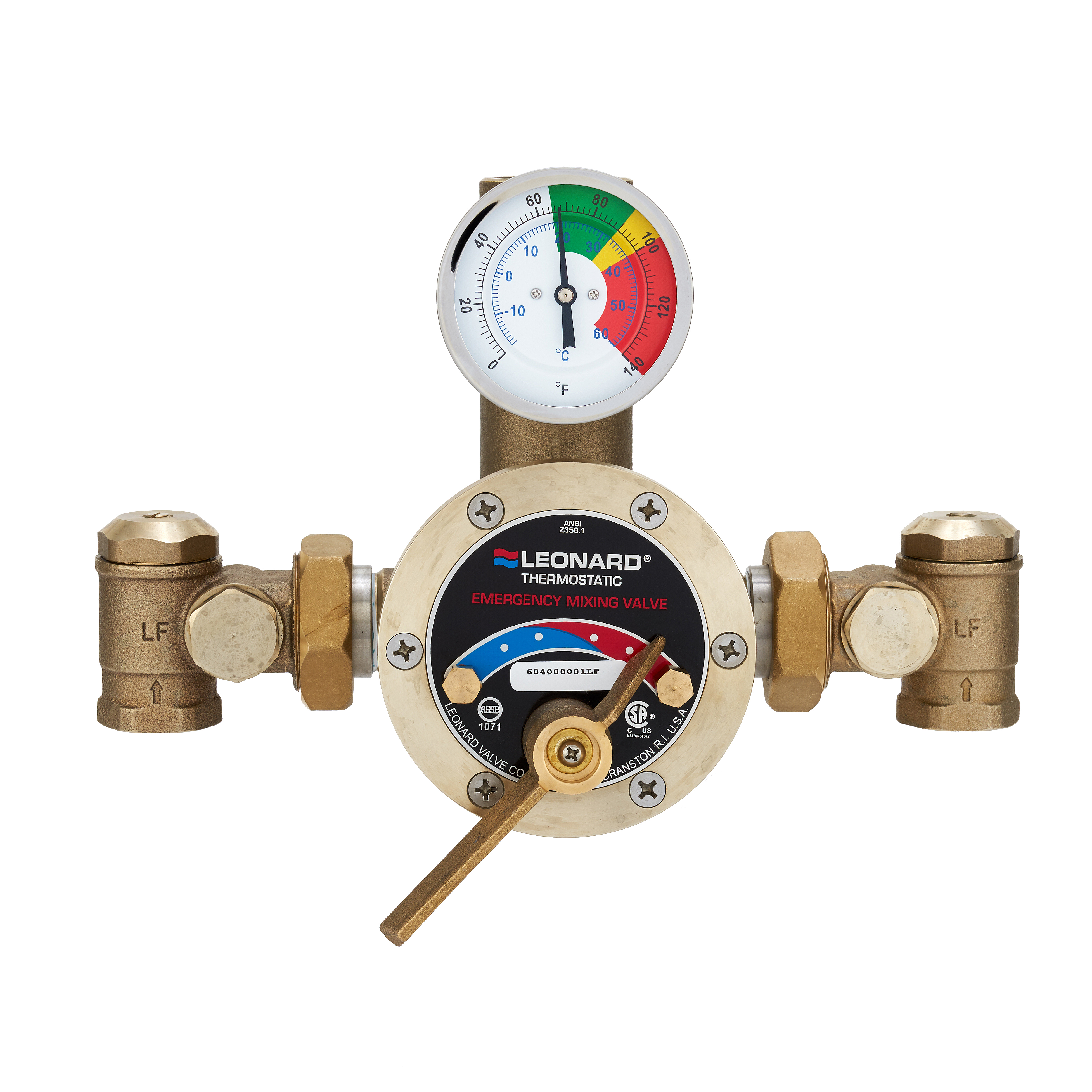

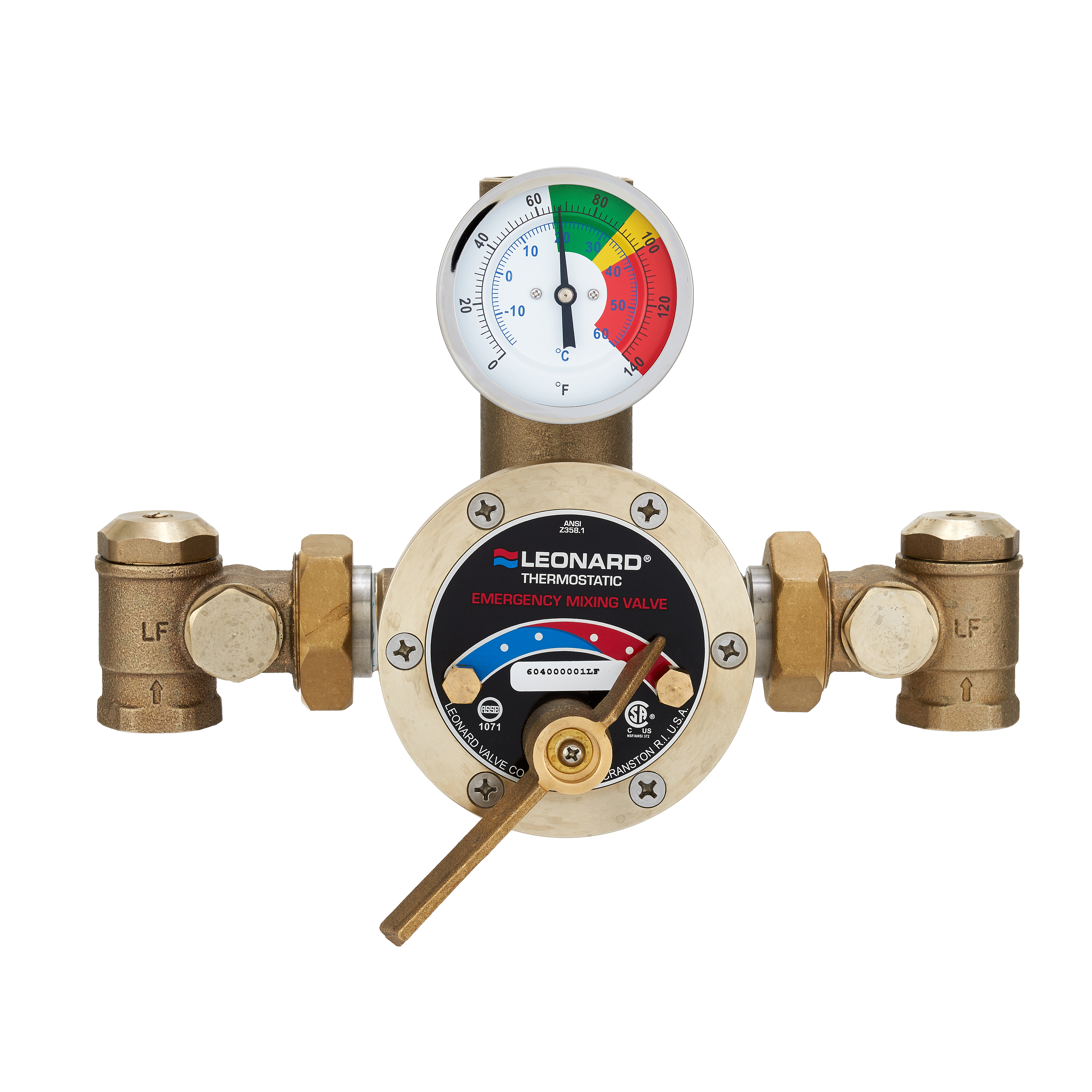

Emergency Eye Wash Valve - Model 6040-LF

 DURA-trol® solid bimetal thermostat directly linked to valve porting

to control the intake of hot and cold water and compensate for supply

temperature and pressure fluctuations DURA-trol® is highly

responsive and cannot be damaged by extremes in temperature

 Thermostatic Mixing Valve can be set to the correct temperature for

the application

 Locking type temperature regulator to prevent accidental movement

set for 85ºF (29ºC)

 Mixing valve will close down on failure of cold water supply

 Mixing Valve with special internal cold water bypass capable of 20

GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply

 Adjustable high temperature limit stop * set for 90ºF (32ºC)

 Full 1” top or bottom inlets and 1 ¼” top outlet

 Integral wall support

 Dial thermometer (range 0 to 140°F, -10 to 60°C)

 Rough bronze finish

 Union angle checkstops on inlets

 Compliance…………ANSI Z358.1

 Maximum supply temperature 180 °F (82°C)

 Maximum supply pressure 125 PSI (8.6 Bar)

Add To Favorites

Downloads

• Submittal Data Sheet - S-6040-LF.pdf
• Operation and Maintenance - G-4.pdf

Options

Chrome Plated Finish	CP
Inlet Thermometers	IT
