LF Cabinet Assembly - LV-203-20-LF-STSTL-REC

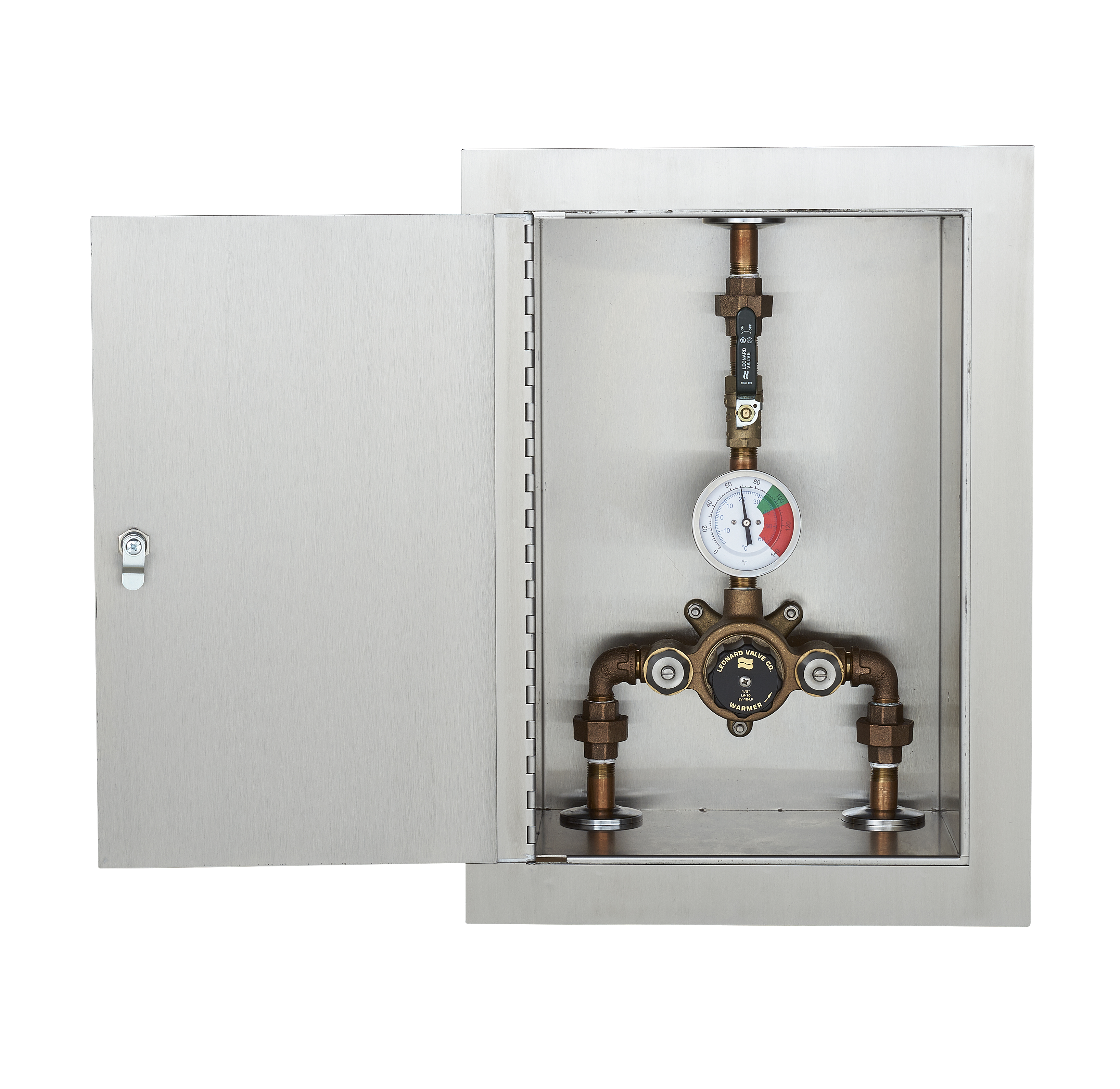

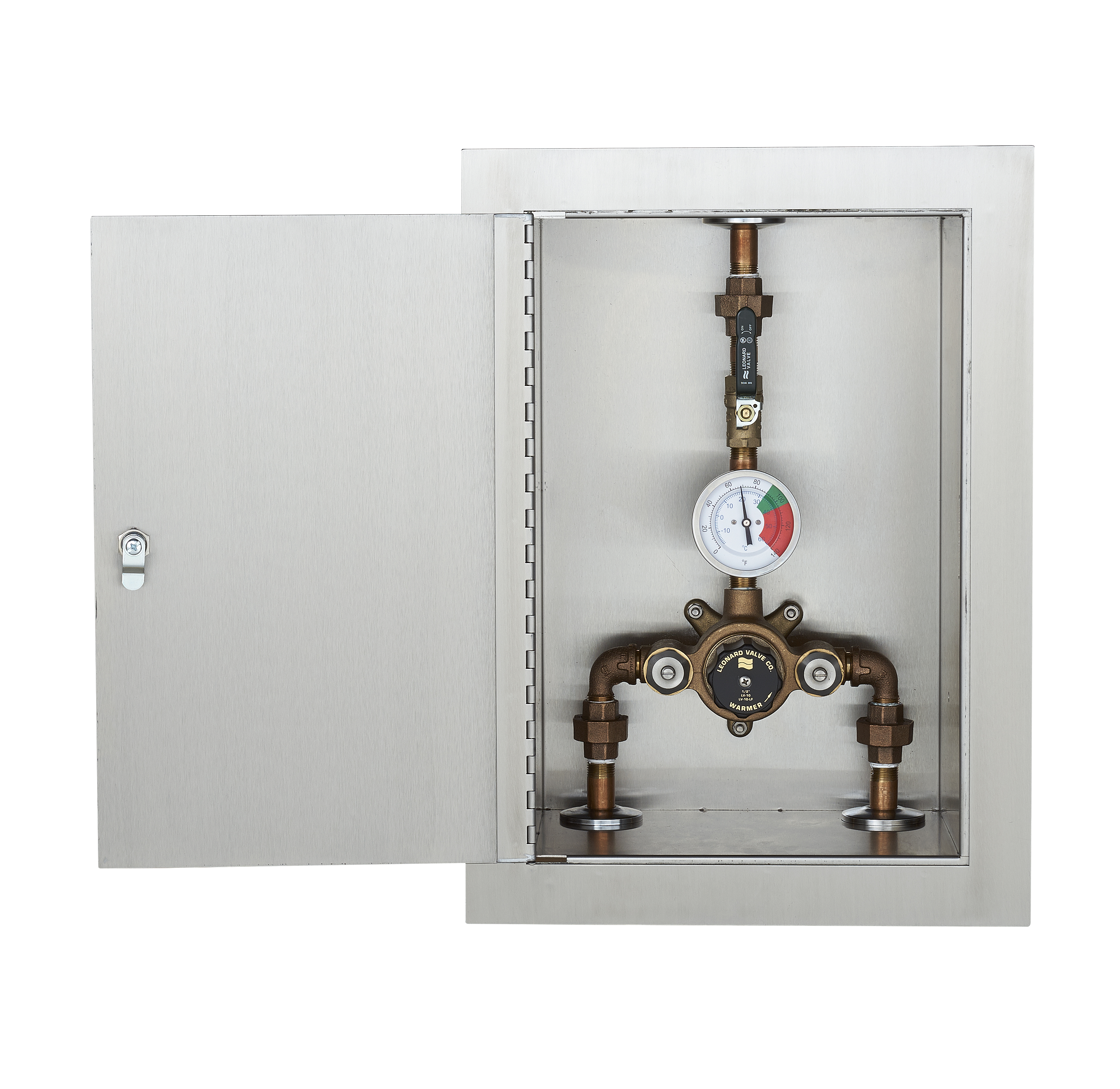

ECO-MIX ™ Thermostatic Water Mixing Valve with 1.0 GPM (3.8 l/min) minimum flow capacity ¾” inlets, ¾” outlet (19 mm x 19mm), Integral combination checkstops with wall support 125 PSI (8.6 BAR) maximum operating pressure, Copper encapsulated thermostatic assembly with Teflon coated stainless steel shuttle, Locking temperature regulating handle, Internal parts of stainless steel, brass, bronze, Integral wall support for easy mounting, Rough Bronze Finish, Adjustable high temperature limit stop set for 110ºF (43ºC), Bottom inlets, Top outlet, with Ball valve, Color-coded dial thermometer (25 to 125ºF, 0 to 50ºC), Temperature adjustment range, 90-140ºF (32-60ºC), Factory assembled and tested, Recessed Stainless steel cabinet, door, left hand hinge, cylinder lock Valve assembly is certified to meet Low-Lead requirements of wetted surface area containing less than 0.25% lead by weight. All other fittings and components, the sum total of which comprise the wetted surface of this product contains less than one quarter of one percent of lead by weight.
