WAX XL CABINET ASSEMBLY

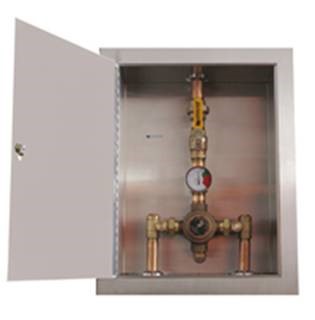

Wax XL Cabinet Assembly - XL-186-52-LF

 Thermostatic water mixing valve
 Copper encapsulated thermostatic assembly with stainless steel shuttle
 Combination checkstops, unions on inlets, wall support
 Locking temperature regulating handle
 Tempered outlet ball valves
 Color coded dial thermometer (0 to140ºF, -10º to 60ºC)
 Temperature adjustment range, 90-140ºF (32-60ºC) **
 Maximum operating pressure is 125PSI
 Cabinet, with door, left hand hinge and flange, cylinder lock
 Bottom inlets, top outlet
 Factory assembled and tested
Valve assembly is certified to meet Low-Lead requirements of wetted surface area containing less than 0.25% lead by weight. All other fittings and components, the sum total of which comprise the wetted surface of this product contains less than one quarter of one percent of lead by weight.
Downloads
Specification
Inlets 3/4"
Outlet 1"
Description
Baked White Exposed Cabinet BWE-EXP
Baked White Recessed Cabinet BWE-REC
Chrome Plated Finish CP
Inlet Thermometers IT
Right Hand Hinge RHH
Stainless Steel Exposed Cabinet STSTL-EXP
Stainless Steel Recessed Cabinet STSTL-REC
Top Inlets TOP
View port VP
Megatron Nucleus Installed
