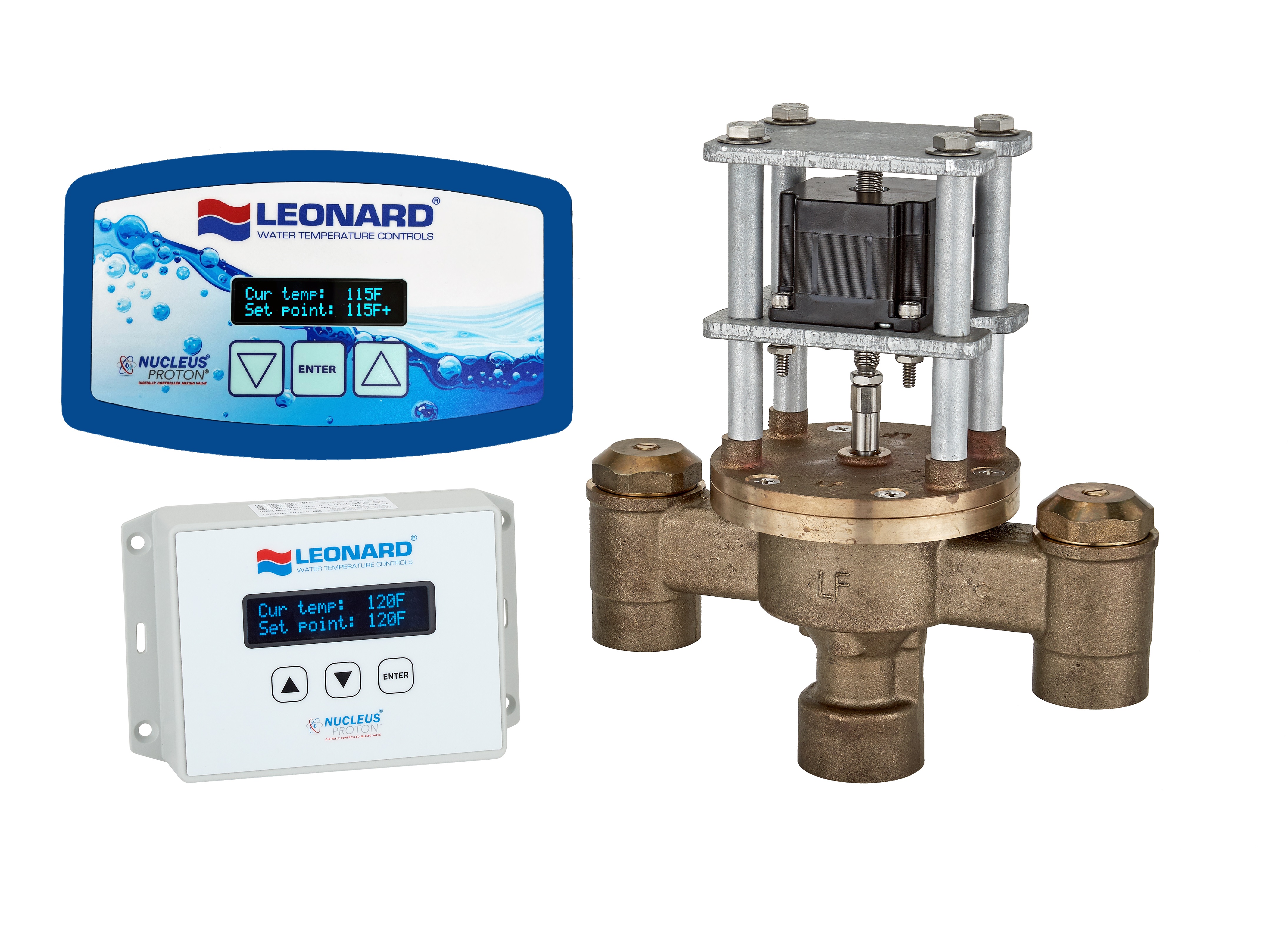

Proton Electronic Mixing Valve - PNV-200-LF

Digital Water Temperature Control with Optional Remote Monitoring

Proton Electronic Mixing Valve - PNV-200-LF

 Digital Mixing Valve with 2” inlet, 2”

Outlet and integral RTD Sensor

 2" NPT inlets, 2" NPT outlet (51mm X 51mm)

 0.25 GPM** (.95 L/min) minimum flow capacity

 Maximum operating pressure: 200 PSIG (1379 KPA)

 Controls water temperature to ± 2°F in accordance with ASSE

1017

 Controls water temperature to ± 2°F during times of low / no

system demand

 Automatic Hot/Cold Water shutoff upon cold/ hot water inlet

supply failure

 User programmable set point range between 65°F and 180°F

 UL Listed Control Box

 UL Listed 120V plug in power supply with 6’ cord

 Simple/intuitive user commissioning and setup

 Factory assembled and tested

Add To Favorites

Downloads

• Full Text Article (pdf only) - Proton Operation and Maintenance Manual.pdf
• Submittal Data Sheet - S-PNV-200-LF.pdf
• CAD Drawing - PNV-200-LF(1).dwg
• REVIT Drawing - Proton 2" Digital Master Mixing Valve Series.rfa
• BIMobject Page Link - Revit

Specification

Inlets	2"
Minimum Flow(GPM)	.25
Outlet	2"

Options

Back up Power Supply up to two hours in case of power loss	BPS
Internet of Things-Modbus to WiFi gateway to cloud	IOT
