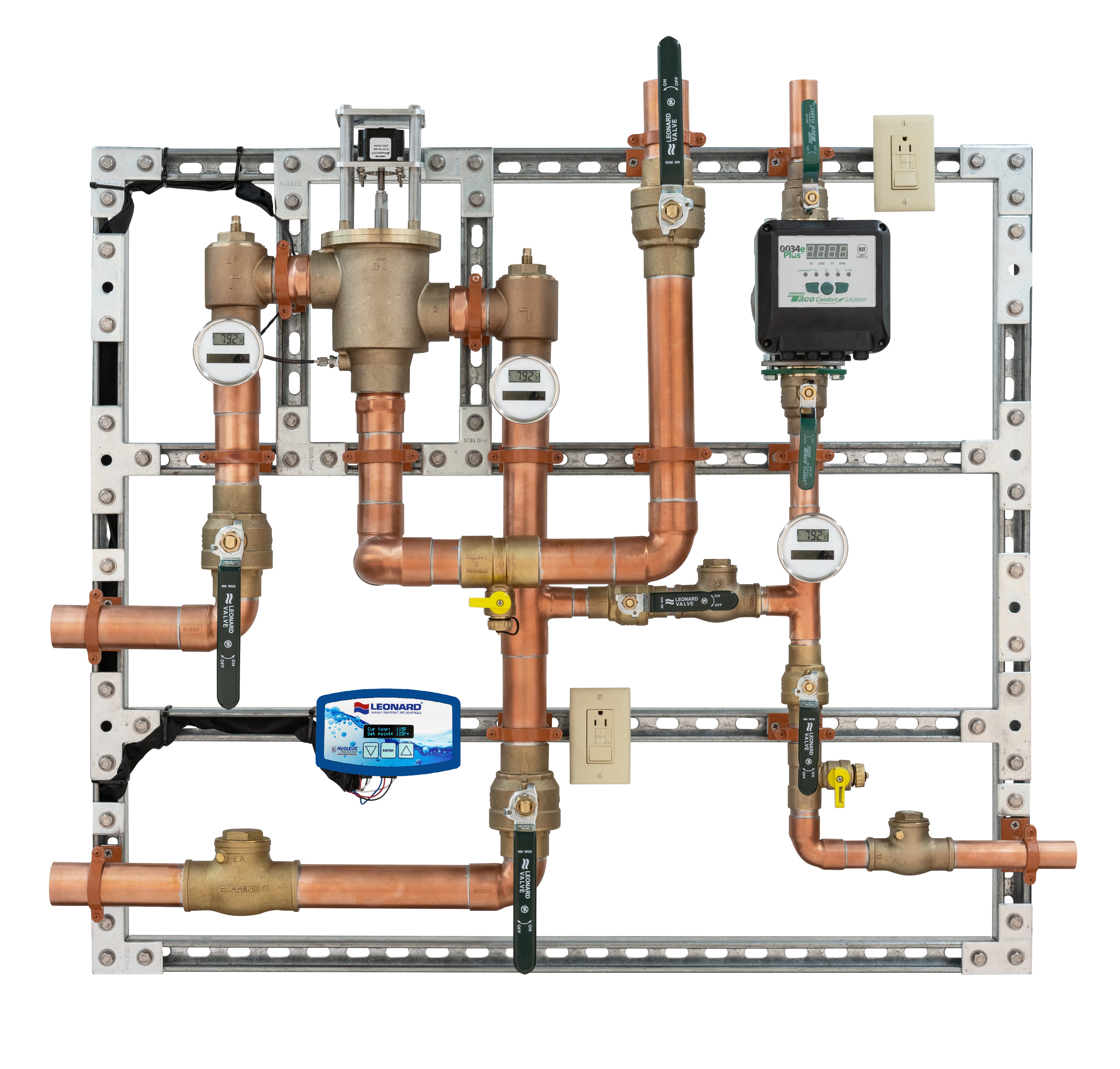

Megatron Proton Electronic Mixing Valve - PNV-200-LF-M

Complete Digital Water Temperature Control System with Optional Remote Monitoring

Megatron Proton Electronic Mixing Valve - PNV-200-LF-M

•    Digital Mixing Valve with 2” inlet angled check  stops,  2” Outlet and integral RTD Sensor

•    2" NPT inlets, 2" NPT outlet (51mm X 51mm)

•    0.25 GPM** (0.95 L/min) minimum flow capacity

•    Maximum operating pressure: 125 PSIG (869 KPA)

•    Controls water temperature to ± 2°F in accordance with ASSE 1017

•    Controls water temperature to ± 2°F during times of low / no

system demand

•    Automatic Hot/Cold Water shutoff upon cold/ hot water inlet supply failure

•    User programmable set point range between 65°F and 180°F

•    UL Listed Control Box

•    UL Listed 120V plug in power supply with 6’ cord

•    Simple and intuitive user commissioning and setup

•    Factory assembled and tested



Add To Favorites

Downloads

• Full Text Article (pdf only) - Proton Operation and Maintenance Manual.pdf
• Submittal Data Sheet - S-PNV-200-LF-M.pdf
• REVIT Drawing - Proton Megatron 2" Digital Water Tempering Solutions System.rta
• BIMobject Page Link - Revit

Specification

Inlets	2"
Minimum Flow(GPM)	.25
Outlet	2"

Options

Back up Power Supply up to two hours in case of power loss	BPS
Internet of Things-Modbus to WiFi gateway to cloud	IOT
