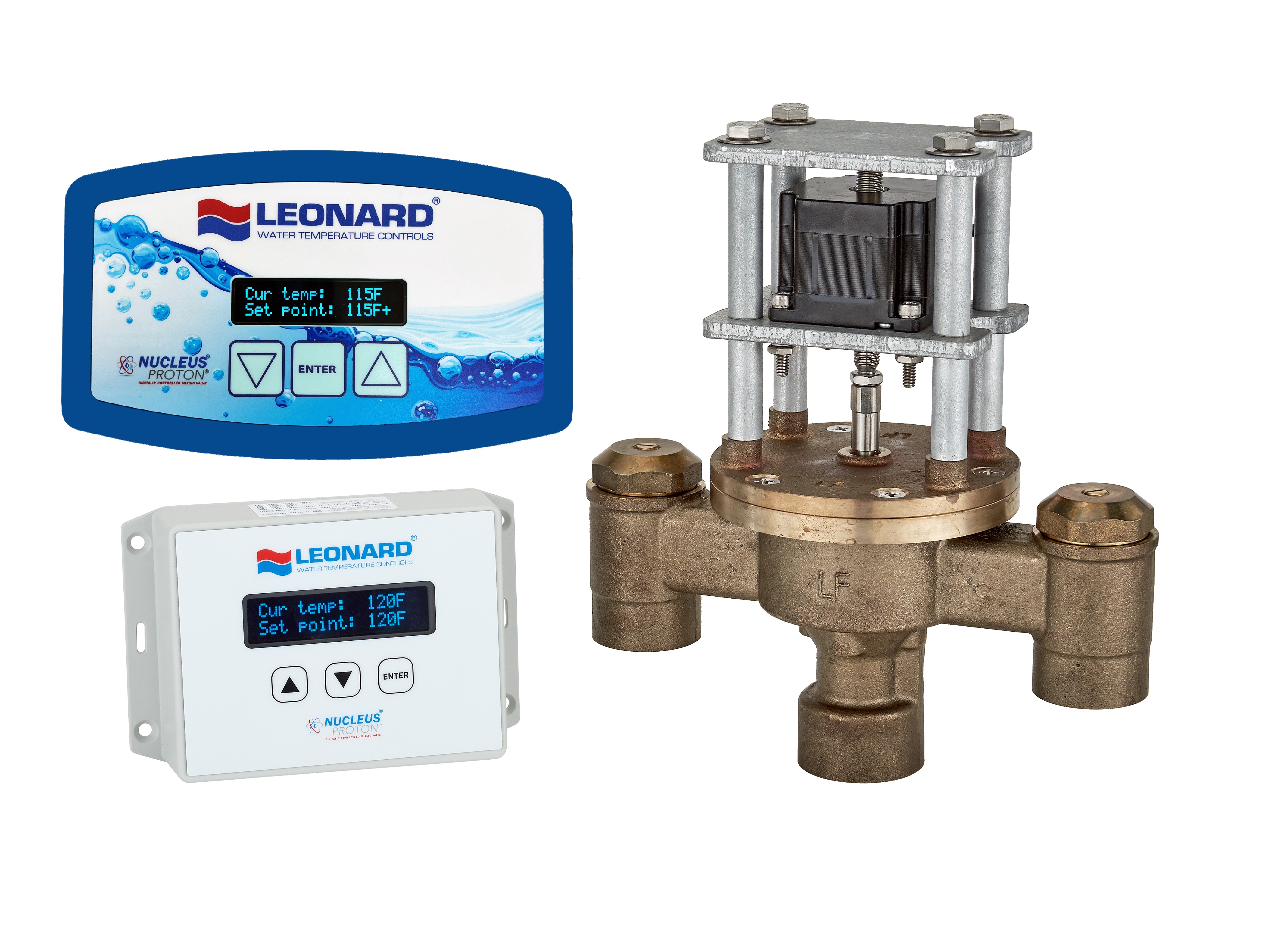

Proton Electronic Mixing Valves - PNV-200-LF-3PS

Digital Water Temperature Control with Optional Remote Monitoring

Proton Electronic Mixing Valves - PNV-200-LF-3PS

Three Digital Mixing Valves with check stops, integral RTD Sensors

4" inlets, 4" outlet (76mm X 102mm)

0.25 GPM** (.95 L/min) minimum flow capacity each

Maximum operating pressure: 125 PSIG (860 KPA)

Controls water temperature to ± 2°F in accordance with ASSE 1017

Controls water temperature to ± 2°F during times of low / no

system demand

Automatic Hot/Cold Water shutoff upon cold/ hot water inlet

supply failure

User programmable set point range between 65°F and 180°F

UL Listed Control Box

UL Listed 120V plug in power supply with 6’ cord

Simple/intuitive user commissioning and setup

Factory assembled and tested

This product meets Low Lead requirements of wetted surface

area containing less than 0.25% lead by weight

Add To Favorites

Downloads

• Full Text Article (pdf only) - Proton Operation and Maintenance Manual.pdf
• Submittal Data Sheet - S-PNV-200-LF-3PS.pdf
• Product Specification - Megatron® PNV-200-LF-3PS-LC SPEC.pdf
• REVIT Drawing - Proton 2" 3-Piece Parallel High-Capacity Digital Master Mixing Valve.rfa

Specification

Inlets	4"
Outlet	4"

Options

Back up Power Supply up to two hours in case of power loss	BPS
Internet of Things-Modbus to WiFi gateway to cloud	IOT
