Proton Electronic Mixing Valves - PNV-200-LF-R

Digital Water Temperature Control with Optional Remote Monitoring

Proton Electronic Mixing Valves - PNV-200-LF-R

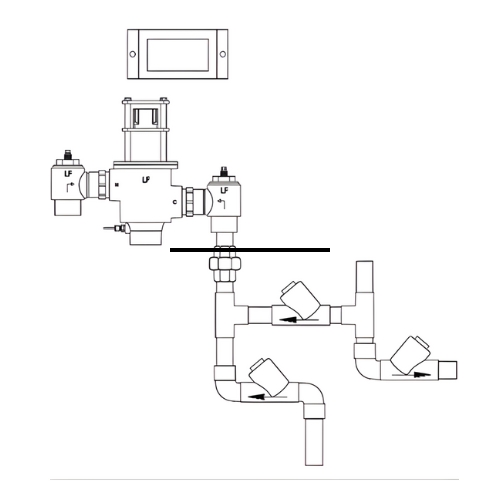

•    Digital Mixing Valve with check stops, integral RTD Sensor, return piping assembly

•    2" inlets, 2" outlet (32mm X 38mm), 1-1/4" return

•    0.25 GPM** (.95 L/min) minimum flow capacity

•    Maximum operating pressure: 125 PSIG (860 KPA)

•    Controls water temperature to ± 2°F in accordance with ASSE 1017

•    Controls water temperature to ± 2°F during times of low / no

system demand

•    Automatic Hot/Cold Water shutoff upon cold/ hot water inlet supply failure

•    User programmable set point range between 65°F and 180°F

•    UL Listed Control Box

•    UL Listed 120V plug in power supply with 6’ cord

•    Simple/intuitive user commissioning and setup

•    Factory assembled and tested



Add To Favorites

Downloads

• Full Text Article (pdf only) - Proton Operation and Maintenance Manual.pdf
• Submittal Data Sheet - S-PNV-200-LF-R.pdf
• Product Specification - PNV-300-LF-R SPEC.pdf
• REVIT Drawing - Proton 2" Digital Master Mixing Valve Series with Simple Recirculation.rfa
• BIMobject Page Link - Revit

Specification

Inlets	2"
Minimum Flow(GPM)	.25
Outlet	2"

Options

Back up Power Supply up to two hours in case of power loss	BPS
Internet of Things-Modbus to WiFi gateway to cloud	IOT
